DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckhcdr-450 industrial round control damperhcdr-450

Greenheck Industrial Round Control Damper (Control Damper). Model HCDR-450. Heavy duty round industrial control damper with flanged frame; Designed for airflow control and shut off in HVAC or industrial systems

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhcdr-450.pdfData sheet

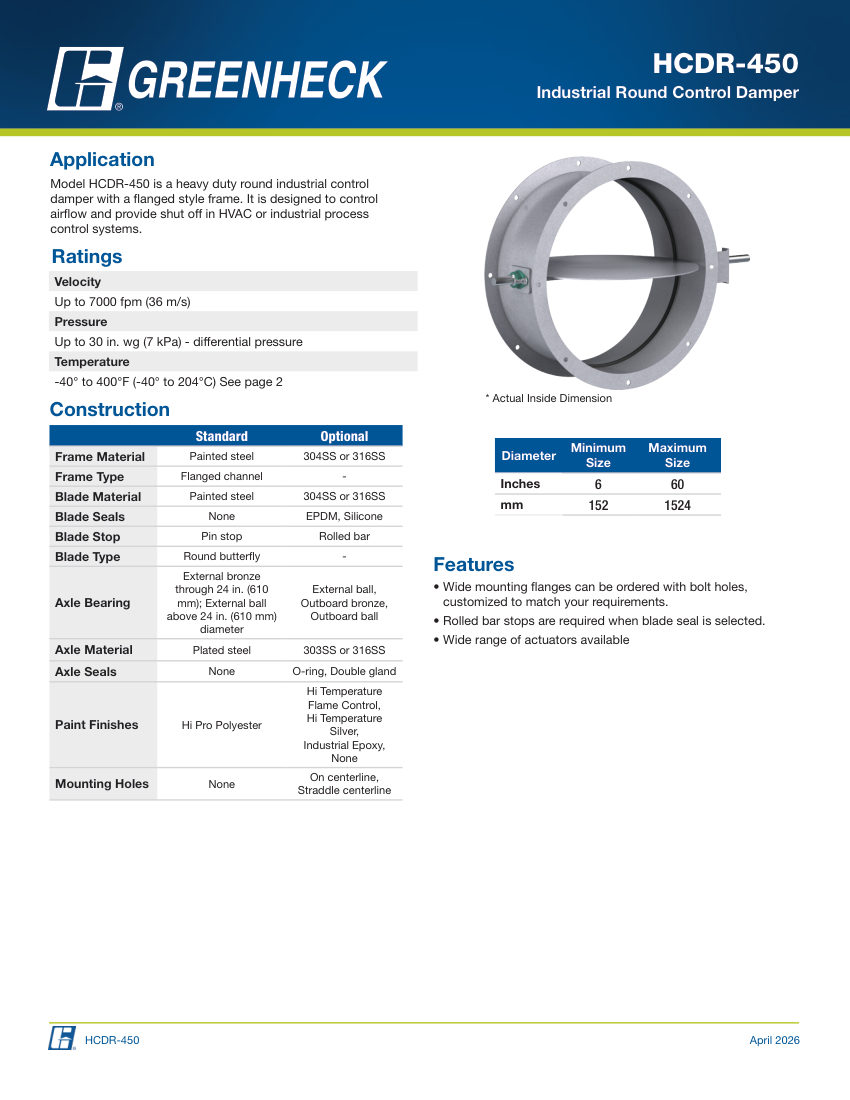

Greenheck hcdr-450 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hcdr-450
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhcdr-450
DescriptionGreenheck Industrial Round Control Damper (Control Damper). Model HCDR-450. Heavy duty round industrial control damper with flanged frame; Designed for airflow control and shut off in HVAC or industrial systems
Temperature range-40° to 400°F (-40° to 204°C)
Blade typeRound butterfly. material: Painted steel (Standard), 304SS or 316SS (Optional)
Connection size6 to 60 inches (152 to 1524 mm)
End connectionFlanged channel
Pressure RatingUp to 30 in. wg (7 kPa) differential
Flow RateUp to 7000 fpm (36 m/s)
FinishHi Pro Polyester, Industrial Epoxy, Silver, or None.
