DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckhpr-120 industrial pressure relief damperhpr-120

Greenheck Industrial Pressure Relief Damper (HVAC Dampers). Model HPR-120. Heavy duty double flanged channel frame with single thickness 2V blades; Standard features include external heavy duty linkage, ball bearings, and blade counterbalance; Adjustable pressure setting weights are standard; Operating temperature range: -20° to 180°F (-29° to 82°C) with seals; -20° to 250°F (-29° to 121°C) without seals. material: Galvanized steel (Standard), 304SS/316SS (Optional)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhpr-120.pdfData sheet

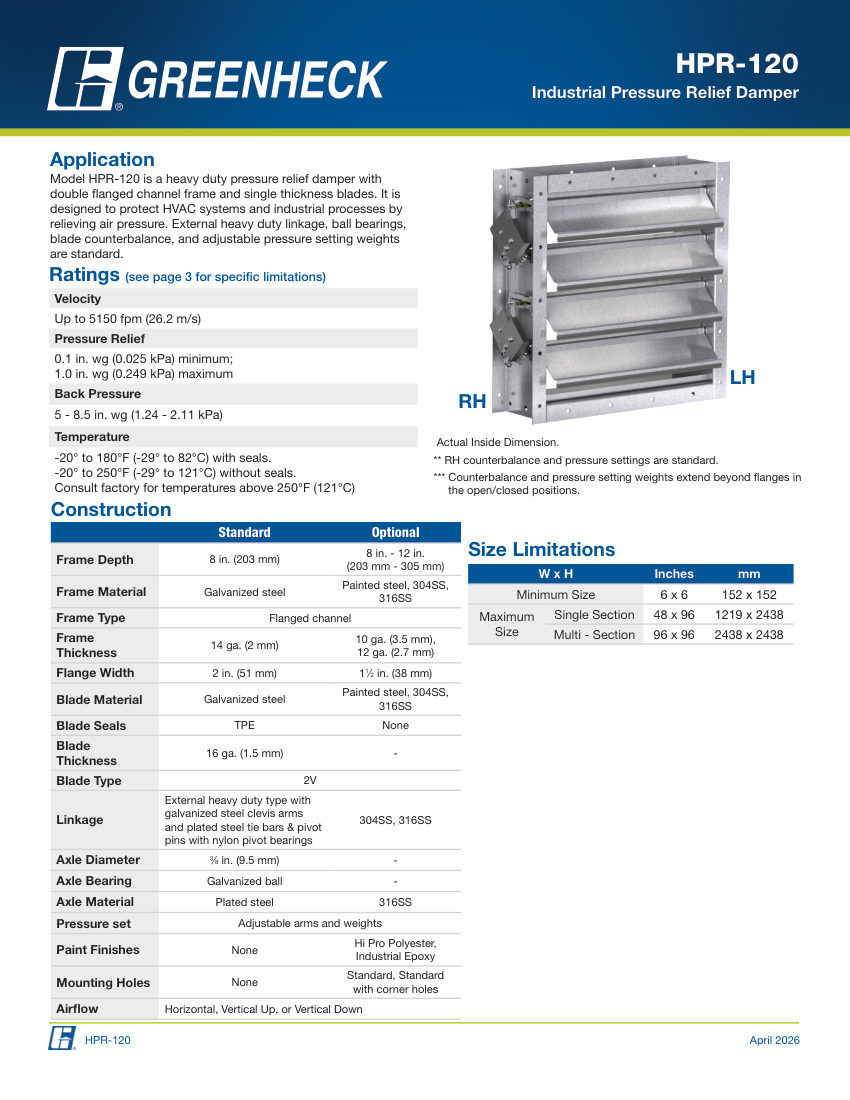

Greenheck hpr-120 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hpr-120
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhpr-120
DescriptionGreenheck Industrial Pressure Relief Damper (HVAC Dampers). Model HPR-120. Heavy duty double flanged channel frame with single thickness 2V blades; Standard features include external heavy duty linkage, ball bearings, and blade counterbalance; Adjustable pressure setting weights are standard; Operating temperature range: -20° to 180°F (-29° to 82°C) with seals; -20° to 250°F (-29° to 121°C) without seals. material: Galvanized steel (Standard), 304SS/316SS (Optional)
Connection sizeMin 6x6 in (152x152 mm), Max Single 48x96 in (1219x2438 mm), Max Multi 96x96 in (2438x2438 mm)
End connectionF
