DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckhpr-230 industrial pressure relief damperhpr-230

Greenheck Industrial Pressure Relief Damper (HVAC Dampers). Model HPR-230. Heavy duty double flanged channel frame with streamlined airfoil blades; External heavy duty linkage with ball bearings and blade counterbalance; Adjustable pressure setting weights standard; Operating temperature range -40° to 250°F (-40° to 121°C). material: Galvanized steel (Standard), 304SS/316SS (Optional)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhpr-230.pdfData sheet

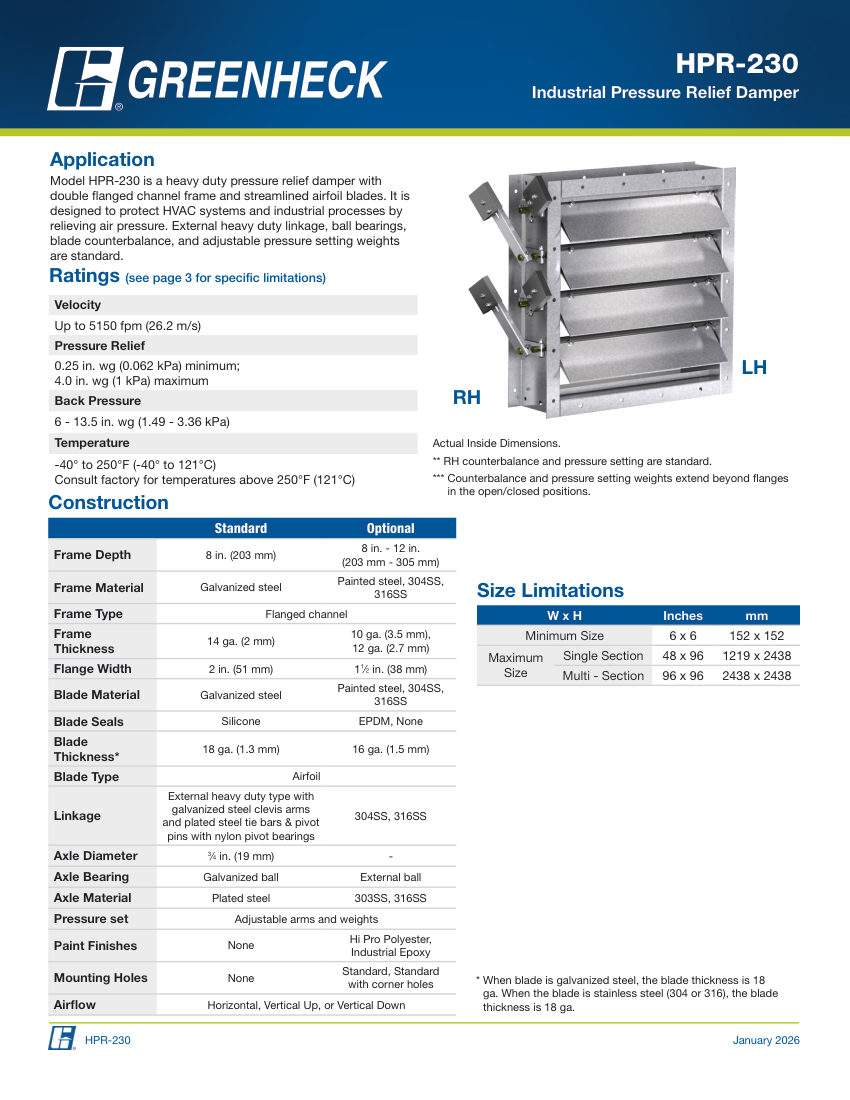

Greenheck hpr-230 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
hpr-230
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhpr-230
DescriptionGreenheck Industrial Pressure Relief Damper (HVAC Dampers). Model HPR-230. Heavy duty double flanged channel frame with streamlined airfoil blades; External heavy duty linkage with ball bearings and blade counterbalance; Adjustable pressure setting weights standard; Operating temperature range -40° to 250°F (-40° to 121°C). material: Galvanized steel (Standard), 304SS/316SS (Optional)
Connection sizeMin 6x6 in (152x152 mm), Max Single 48x96 in (1219x2438 mm), Max Multi 96x96 in (2438x2438 mm)
End connectionFlanged channel
Pressure RatingRelief: 0.25-4.0 in. wg (0.062-1 kPa); Back Pressur
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
