Greenheckhtod-330 heavy duty tornado damperhtod-330

Greenheck Heavy Duty Tornado Damper (HVAC Dampers). Model HTOD-330. Double thickness fabricated airfoil blades; Operating temperature range: -40°F to 250°F (-40°C to 121°C)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhtod-330.pdfData sheet

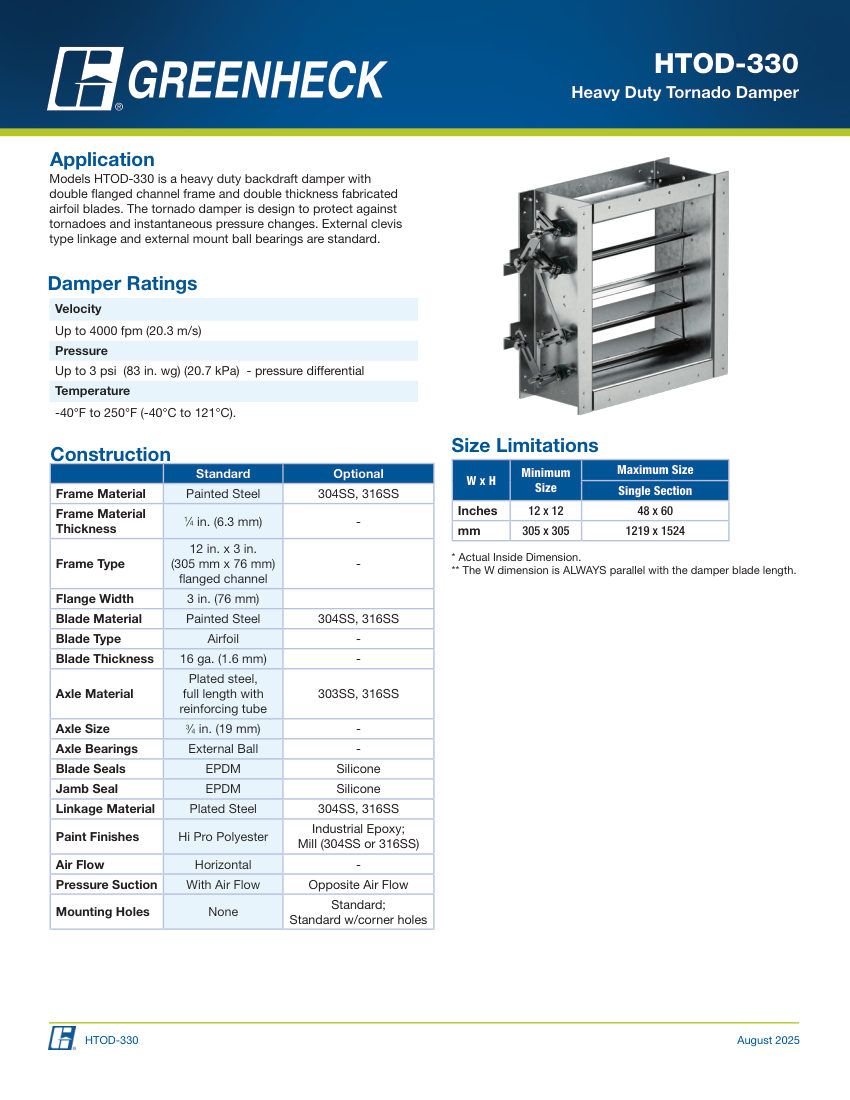

Greenheck htod-330 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
htod-330
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhtod-330
DescriptionGreenheck Heavy Duty Tornado Damper (HVAC Dampers). Model HTOD-330. Double thickness fabricated airfoil blades; Operating temperature range: -40°F to 250°F (-40°C to 121°C)
Blade sealsEPDM (Standard) or Silicone (Optional)
Axle3/4 in (19 mm) plated steel with reinforcing tube. material: Painted Steel (Standard), 304SS/316SS (Optional)
Connection size12x12 in to 48x60 in (305x305 mm to 1219x1524 mm)
End connectionDouble flanged channel frame
Pressure RatingUp to 3 psi (20.7 kPa) differential
Flow RateUp to 4000 fpm (20.3 m/s)
FinishHi Pro Polyester or Industrial Epoxy (Standard
