DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckicd-44 insulated control dampericd-44

Greenheck Insulated Control Damper (HVAC Dampers). Model ICD-44. Thermally broken blade design to minimize thermal transfer and condensation; Leakage rating of 3 cfm/ft2 @ 1 in. wg (55 cmh/m2 @ .25 kPa) or less; Operating temperature range of -70°F to 200°F (-56°C to 93°C); Available in Parallel and Opposed blade actions. material: Aluminum (6063T5) frame, Extruded Aluminum (6063T5) blades, Plated Steel linkage

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFicd-44.pdfData sheet

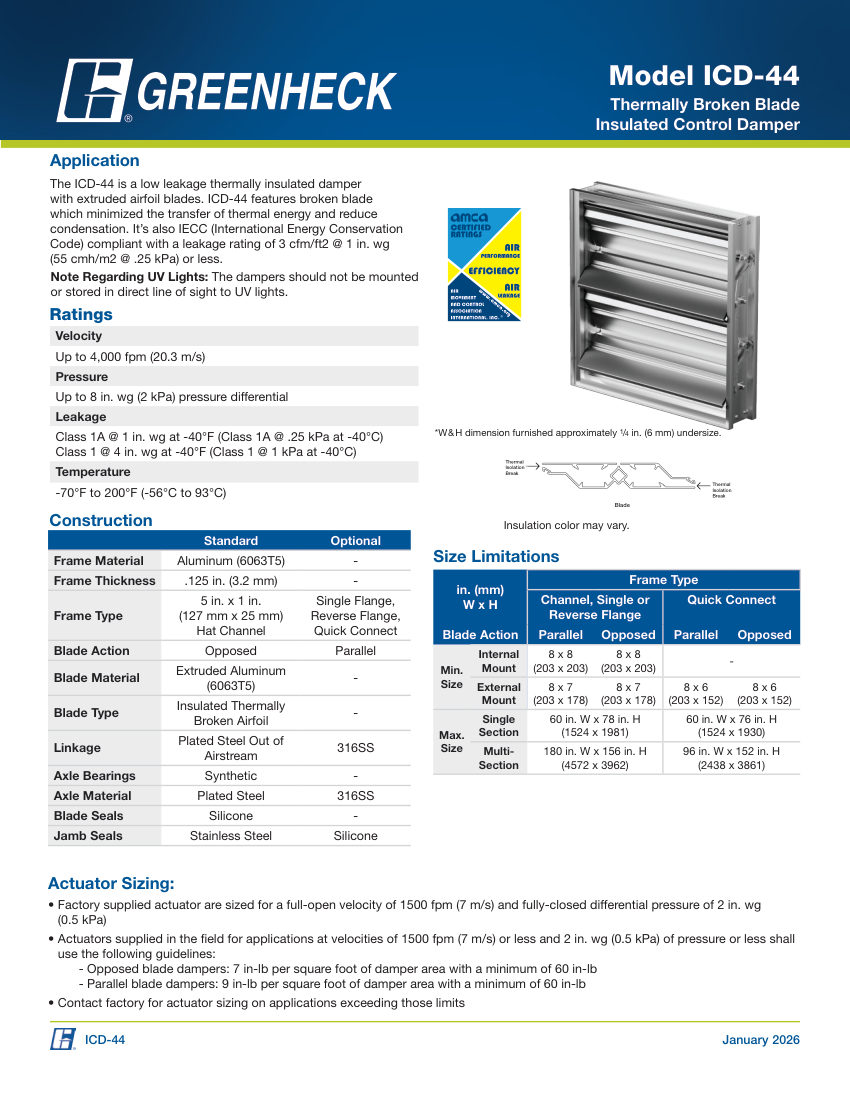

Greenheck icd-44 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
icd-44
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbericd-44
DescriptionGreenheck Insulated Control Damper (HVAC Dampers). Model ICD-44. Thermally broken blade design to minimize thermal transfer and condensation; Leakage rating of 3 cfm/ft2 @ 1 in. wg (55 cmh/m2 @ .25 kPa) or less; Operating temperature range of -70°F to 200°F (-56°C to 93°C); Available in Parallel and Opposed blade actions. material: Aluminum (6063T5) frame, Extruded Aluminum (6063T5) blades, Plated Steel linkage
End connectionSingle Flange, Reverse Flange, Hat Channel, Quick Connect
Pressure RatingUp to 8 in. wg (2 kPa)
Flow RateUp to 4,000 fpm (20.3 m/s)
MountingInternal or External
