Greenheckicd-45 insulated control dampericd-45
Greenheck Insulated Control Damper (HVAC Dampers). Model ICD-45. Thermally broken frame and extruded airfoil blades; Leakage rating of 3 cfm/ft2 @ 1 in. wg or less; Operating temperature range -70°F to 200°F (-56°C to 93°C)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- icd-45
- Product type
- Dampers
- MasterFormat
- 23

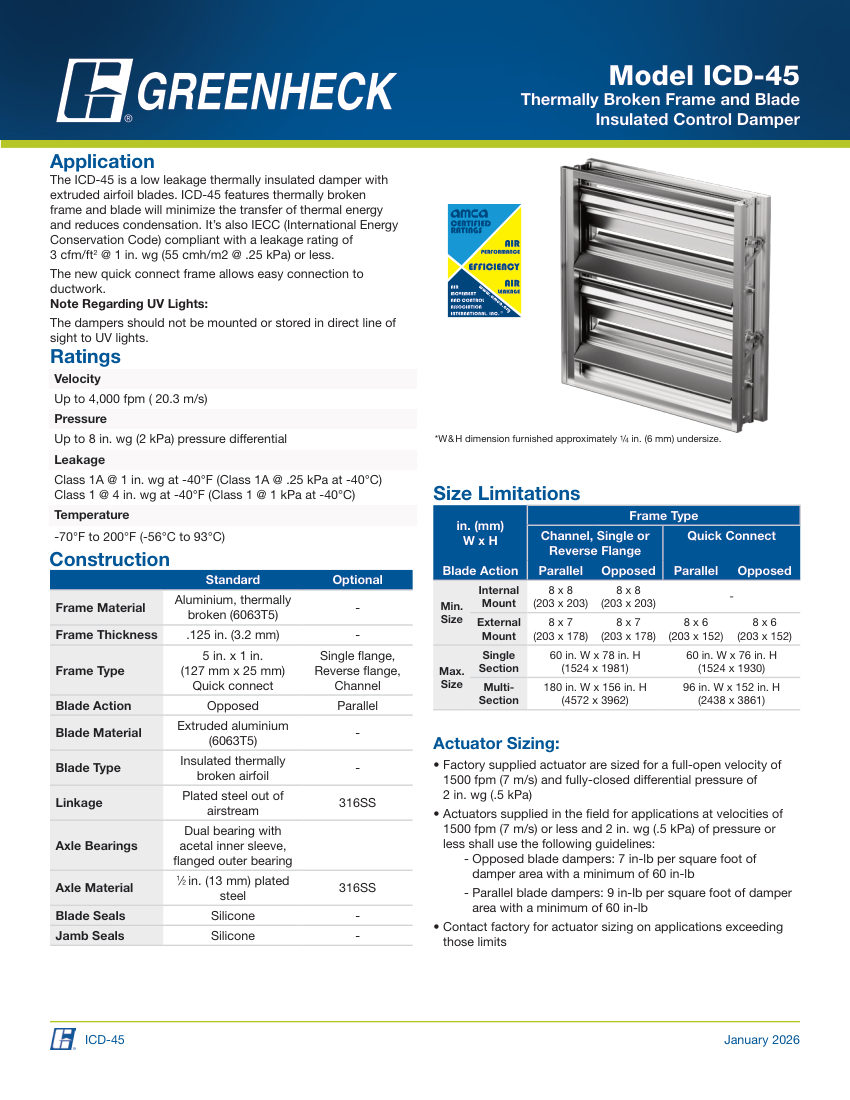

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | icd-45 |
|---|---|
| Description | Greenheck Insulated Control Damper (HVAC Dampers). Model ICD-45. Thermally broken frame and extruded airfoil blades; Leakage rating of 3 cfm/ft2 @ 1 in. wg or less; Operating temperature range -70°F to 200°F (-56°C to 93°C) |
| Blade action options | Parallel or Opposed. material: Aluminium (6063T5) frame and blades, 316SS linkage |
| Connection size | Min 8x8 in (203x203 mm), Max 180x156 in (4572x3962 mm) |
| End connection | Channel, Single or Reverse Flange, Quick Connect |
| Pressure Rating | Up to 8 in. wg (2 kPa) |
| Flow Rate | Up to 4,000 fpm (20.3 m/s) |
| Mounting | Internal or External. |
