Greenheckmbd-10

Greenheck Manual Balancing Damper (Dampers). Model MBD-10. Frame material is 22 ga. (0.8 mm) galvanized steel; Blade material is 20 ga. (1 mm) galvanized steel; Standard operator is a locking manual quadrant; Optional cable operator available with 3, 6, or 9 ft cable lengths. material: Galvanized steel frame and blades

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFmbd-10.pdfData sheet

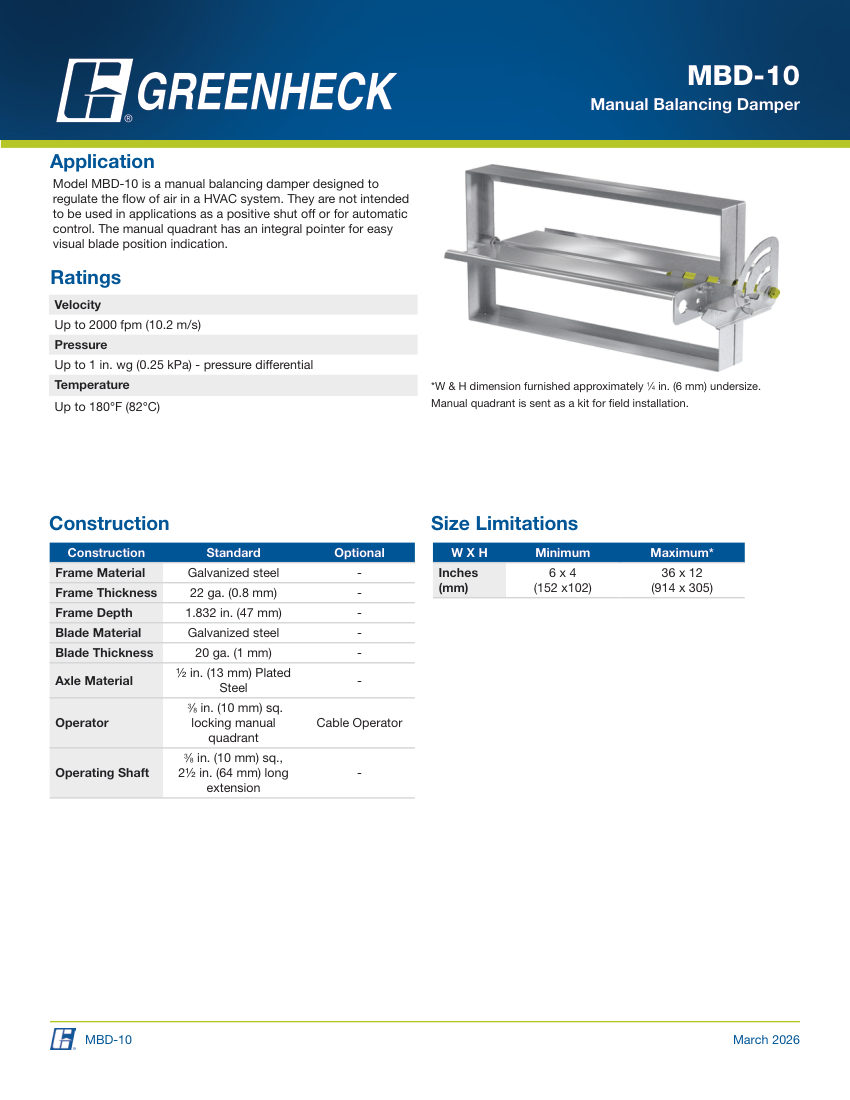

Greenheck mbd-10 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
mbd-10
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbermbd-10
DescriptionGreenheck Manual Balancing Damper (Dampers). Model MBD-10. Frame material is 22 ga. (0.8 mm) galvanized steel; Blade material is 20 ga. (1 mm) galvanized steel; Standard operator is a locking manual quadrant; Optional cable operator available with 3, 6, or 9 ft cable lengths. material: Galvanized steel frame and blades
Connection size6x4 in. to 36x12 in. (152x102 mm to 914x305 mm)
Pressure RatingUp to 1 in. wg (0.25 kPa) differential
Flow RateUp to 2000 fpm (10.2 m/s)
FinishGalvanized
MountingDuct mounted.
