DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckmbd-15

Greenheck Manual Balancing Damper (Dampers). Model MBD-15. Multi-blade design with 3V opposed or parallel blade operation; Frame and blades constructed from 16 ga. (1.5 mm) galvanized steel; Standard operator is 1 1/2 in. (38 mm) manual quadrant with locking; Optional cable operator available with 3, 6, or 9 ft cable lengths. material: Galvanized Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFmbd-15.pdfData sheet

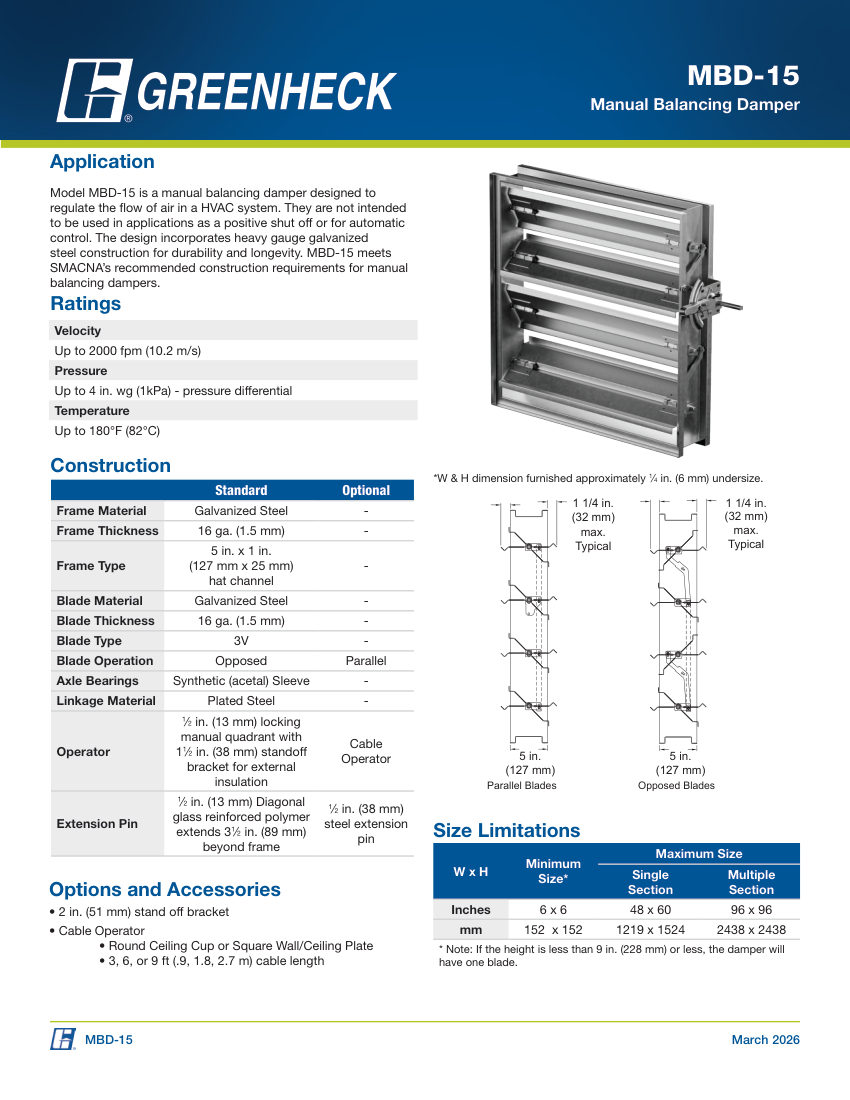

Greenheck mbd-15 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
mbd-15
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbermbd-15
DescriptionGreenheck Manual Balancing Damper (Dampers). Model MBD-15. Multi-blade design with 3V opposed or parallel blade operation; Frame and blades constructed from 16 ga. (1.5 mm) galvanized steel; Standard operator is 1 1/2 in. (38 mm) manual quadrant with locking; Optional cable operator available with 3, 6, or 9 ft cable lengths. material: Galvanized Steel
Pressure RatingUp to 4 in. wg (1kPa)
Flow RateUp to 2000 fpm (10.2 m/s)
Mounting1 1/2 in. (38 mm) standoff bracket
DimensionsMin 6x6 in (152x152 mm); Max Single 48x60 in (1219x1524 mm); Max Multiple 96x96 in (2438x2438 mm); compliance:
