DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckmbdr-50 roundmbdr-50

Greenheck Round Manual Balancing Damper (Dampers). Model MBDR-50. Round manual balancing damper for HVAC air flow regulation; Not intended for positive shut-off or automatic control; Maximum operating temperature 180°F (82°C); Standard operator is locking manual quadrant. material: Galvanized steel frame, Galvanized steel or Acetal blades, Plated steel axle

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFmbdr-50.pdfData sheet

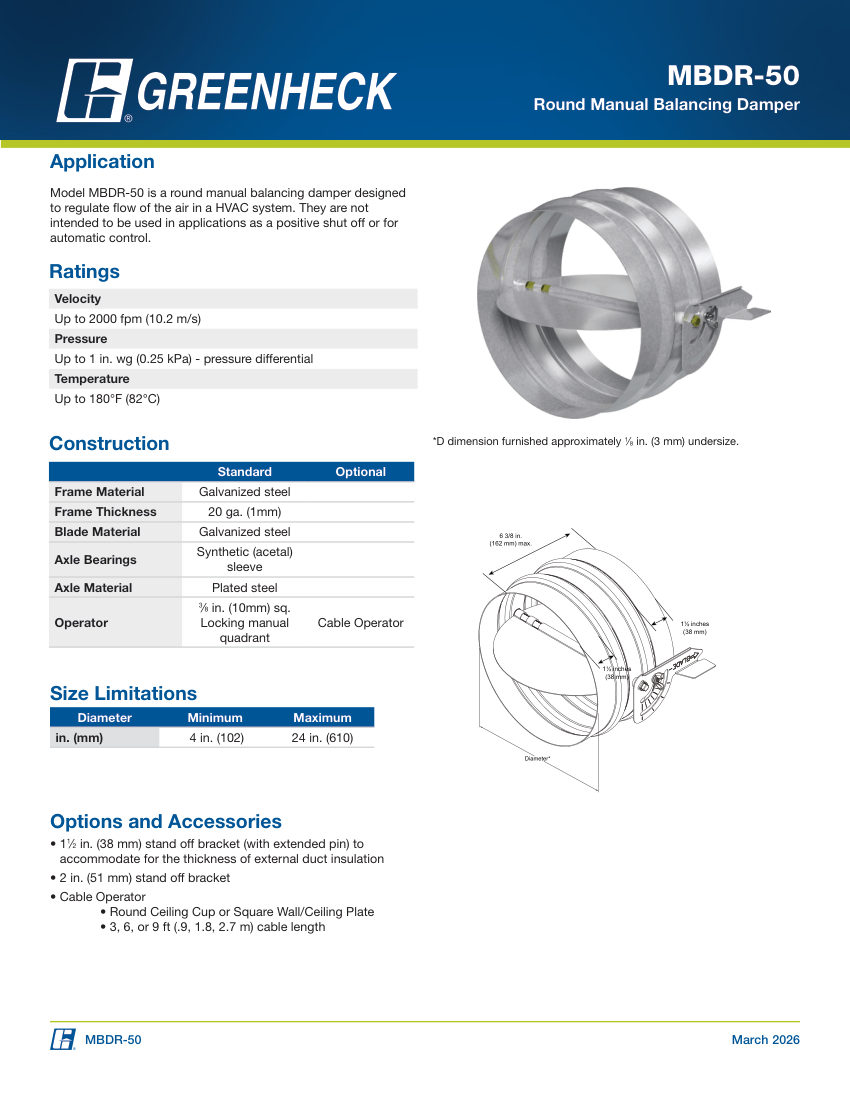

Greenheck mbdr-50 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
mbdr-50
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbermbdr-50
DescriptionGreenheck Round Manual Balancing Damper (Dampers). Model MBDR-50. Round manual balancing damper for HVAC air flow regulation; Not intended for positive shut-off or automatic control; Maximum operating temperature 180°F (82°C); Standard operator is locking manual quadrant. material: Galvanized steel frame, Galvanized steel or Acetal blades, Plated steel axle
Connection size4 in. (102 mm) to 24 in. (610 mm) diameter
End connectionDuct
Pressure RatingUp to 1 in. wg (0.25 kPa) differential
Flow RateUp to 2000 fpm (10.2 m/s) velocity
FinishGalvanized.
