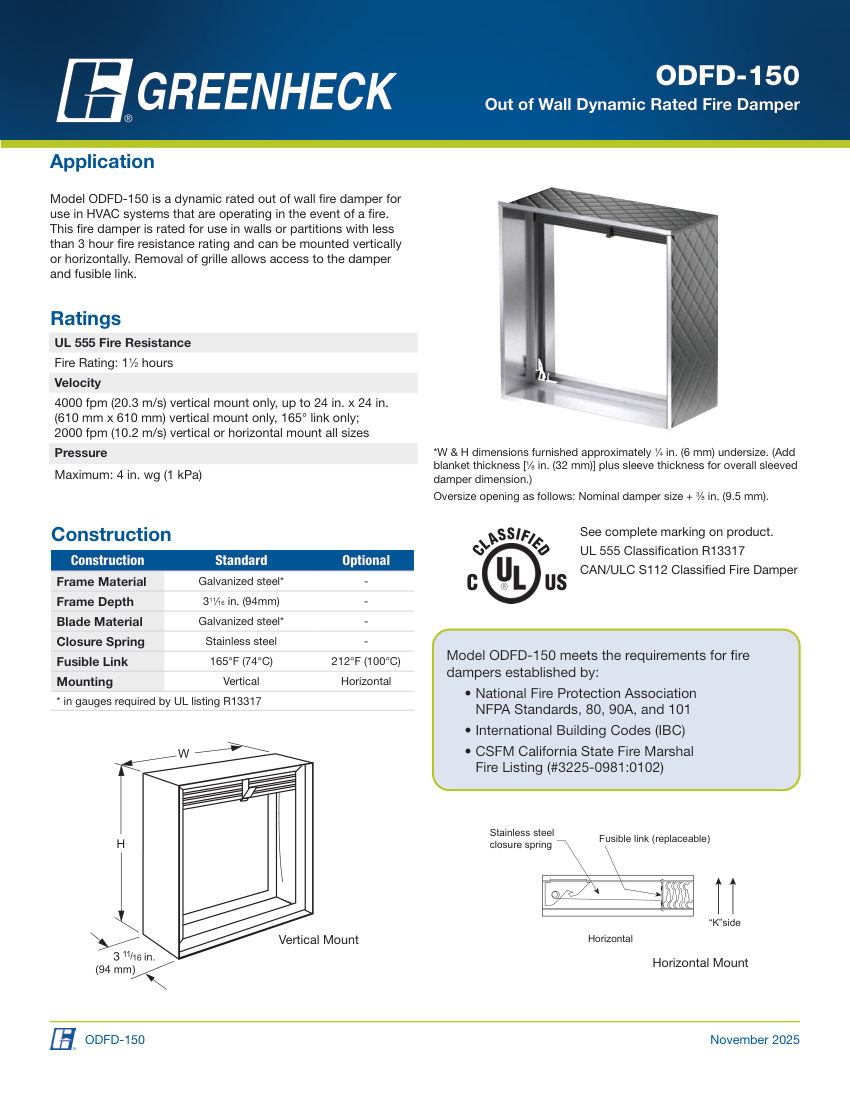

Name: Greenheck odfd-150 out of wall dynamic rated fire damper
Brand: Greenheck
SKU: odfd-150

Greenheck Out of Wall Dynamic Rated Fire Damper (Fire Damper). Model ODFD-150. Fire Rating: 1 1/2 hours

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	odfd-150
Description	Greenheck Out of Wall Dynamic Rated Fire Damper (Fire Damper). Model ODFD-150. Fire Rating: 1 1/2 hours
Fusible Link	165°F (74°C) standard, 212°F (100°C) optional; UL 555 Classification R13317; CAN/ULC S112 Classified. material: Galvanized steel frame and blades, stainless steel closure spring
Connection size	4x4 in. to 36x36 in. (Single Section)
End connection	Vertical or Horizontal Mount
Pressure Rating	Maximum 4 in. wg (1 kPa)
Flow Rate	4000 fpm (20.3 m/s) vertical mount only; 2000 fpm (10.2 m/s) vertical or horizontal
Mounting	Vertical or Horizontal.
