Greenheckpoc retaining angle

Greenheck Retaining Angle (Damper Accessories). Model POC. One-piece design formed from four riveted pieces; 20 ga. (1 mm) steel for 1.5-hour rated dampers up to 48 in.; 16 ga. (1.5 mm) steel for 3-hour rated or dampers over 48 in.; Ships in one piece if damper width + height is 44 in. (1117 mm) or less. material: Galvanized steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFpoc-retaining-angle.pdfData sheet

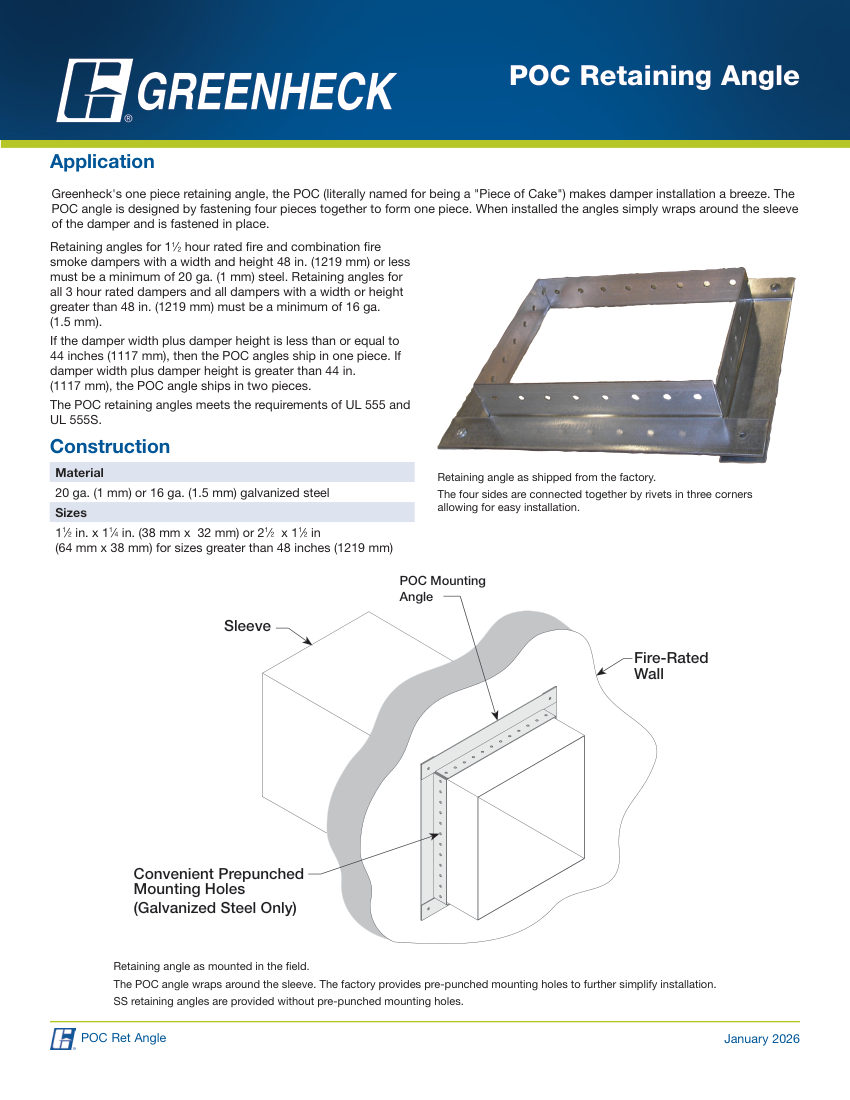

Greenheck poc retaining angle cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
poc retaining angle
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberpoc retaining angle
DescriptionGreenheck Retaining Angle (Damper Accessories). Model POC. One-piece design formed from four riveted pieces; 20 ga. (1 mm) steel for 1.5-hour rated dampers up to 48 in.; 16 ga. (1.5 mm) steel for 3-hour rated or dampers over 48 in.; Ships in one piece if damper width + height is 44 in. (1117 mm) or less. material: Galvanized steel
Connection size1.5 in. x 1.25 in. (38 mm x 32 mm) or 2.5 in. x 1.5 in. (64 mm x 38 mm)
End connectionRiveted corners, pre-punched mounting holes
FinishGalvanized
MountingWraps around damper sleeve
DimensionsFor dampers up to 48 in. (1219 mm) width/height
