DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckquick connect breakaway connection

Greenheck Quick Connect Breakaway Connection (Damper Accessories). Model Quick Connect. Provides airtight cross connection without slip joints; Flange material is 20 ga. (1 mm) galvanized steel; Sleeve maximum thickness is 16 ga. (1.5 mm) galvanized steel; Gasket is extruded butyl (not supplied by Greenheck). material: 20 ga. (1 mm) galvanized flange, 16 ga. (1.5 mm) galvanized steel sleeve, galvanized corner clips

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFquick-connect-breakaway-connection.pdfData sheet

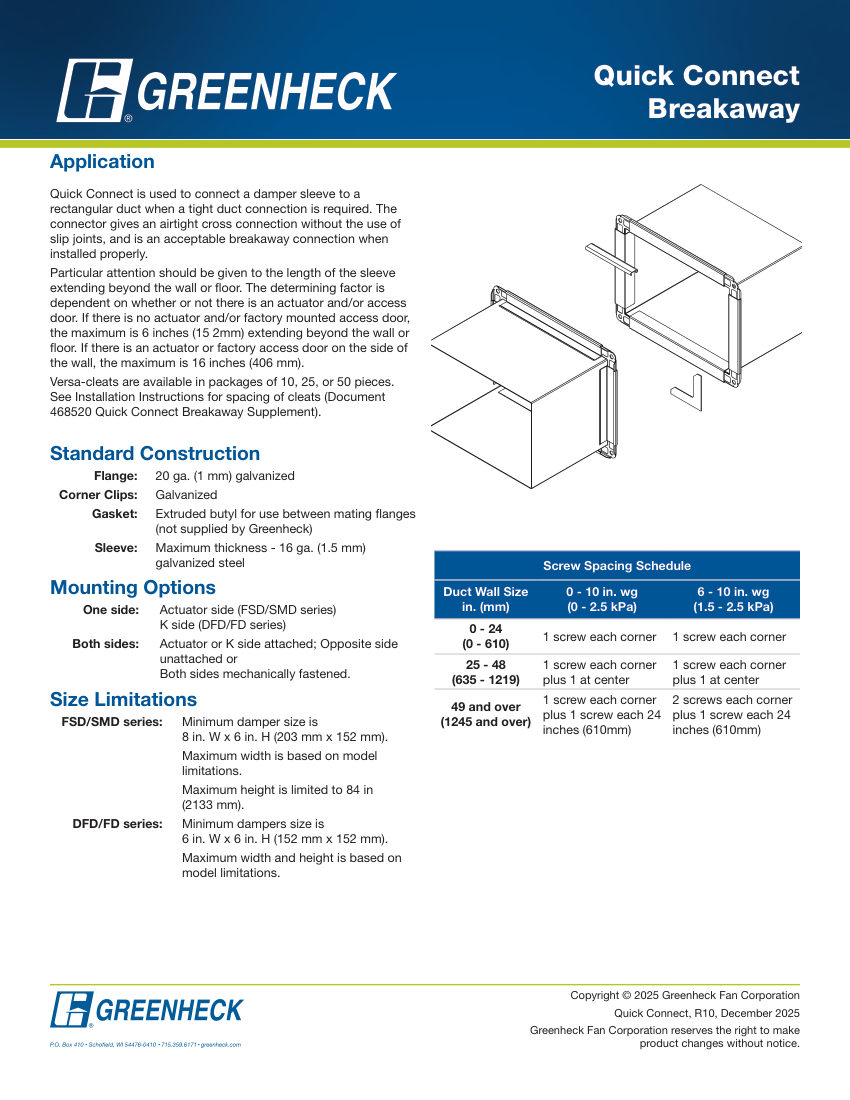

Greenheck quick connect breakaway connection cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
quick connect breakaway connection
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberquick connect breakaway connection
DescriptionGreenheck Quick Connect Breakaway Connection (Damper Accessories). Model Quick Connect. Provides airtight cross connection without slip joints; Flange material is 20 ga. (1 mm) galvanized steel; Sleeve maximum thickness is 16 ga. (1.5 mm) galvanized steel; Gasket is extruded butyl (not supplied by Greenheck). material: 20 ga. (1 mm) galvanized flange, 16 ga. (1.5 mm) galvanized steel sleeve, galvanized corner clips
Connection sizeFSD/SMD min 8x6 in (203x152 mm), max height 84 in (2133 mm); DFD/FD min 6x6 in (152x152 mm)
End connectionRectangular duct, damper sleeve
Pressure Rating0 - 10
