Greenheckrad round duct access door

Greenheck Round Duct Access Door (Duct Access). Model RAD. Three layers of precision stamped steel; Cellular sponge EPDM gasket permanently bonded to door; High impact plastic knobs for tool-free operation; Available in non-insulated and insulated options. material: Hot-dipped galvanized steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFrad-round-duct-access-door.pdfData sheet

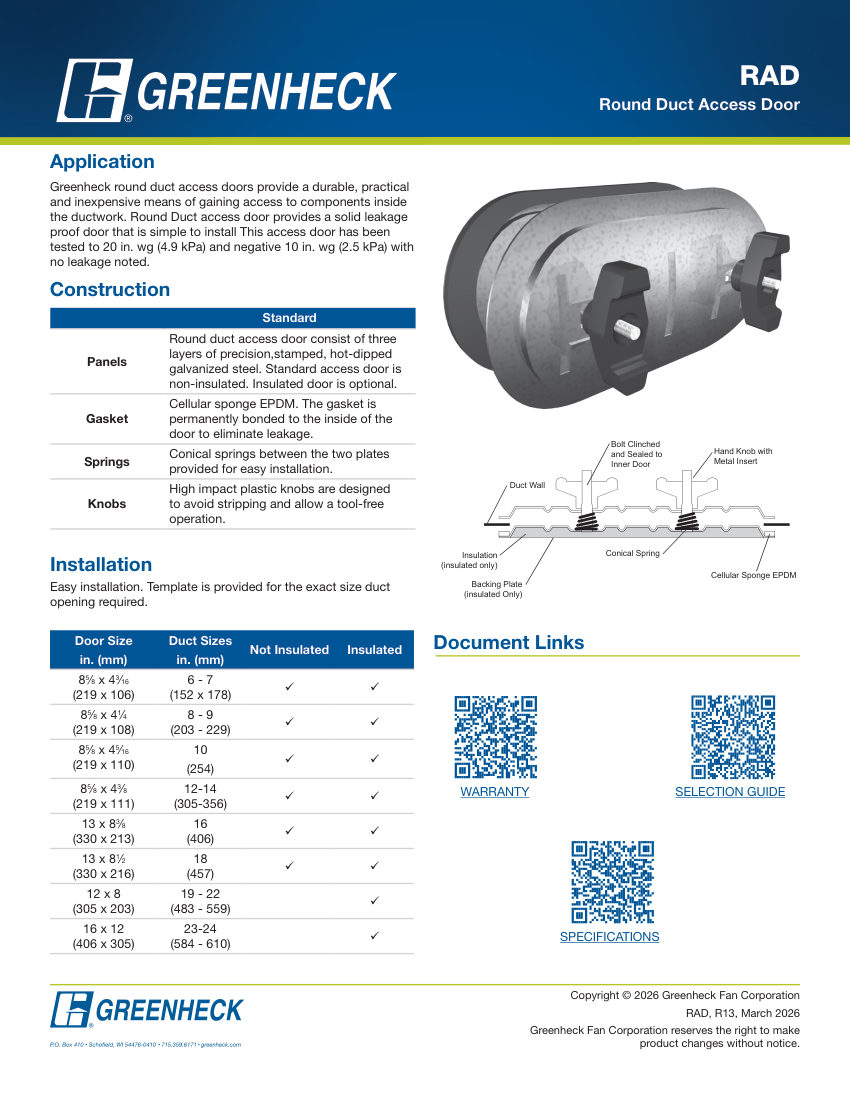

Greenheck rad round duct access door cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
rad round duct access door
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberrad round duct access door
DescriptionGreenheck Round Duct Access Door (Duct Access). Model RAD. Three layers of precision stamped steel; Cellular sponge EPDM gasket permanently bonded to door; High impact plastic knobs for tool-free operation; Available in non-insulated and insulated options. material: Hot-dipped galvanized steel
Connection size6-24 in. (152-610 mm)
End connectionBolt clinched and sealed to inner door
Pressure Rating20 in. wg (4.9 kPa) positive, -10 in. wg (2.5 kPa) negative
FinishGalvanized
MountingConical springs.
