Greenheckrbd-10 remote balancing damperrbd-10
Greenheck Remote Balancing Damper (Balancing Damper). Model RBD-10. Regulates airflow in HVAC systems via remote actuator; Opposed blade action with integral 1/2 in. (13mm) axles; Maximum operating temperature 180°F (82°C); Uses 'EZ Balance' handheld remote with 9V power supply. material: Galvanized Steel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- rbd-10
- Product type
- Dampers
- MasterFormat
- 23

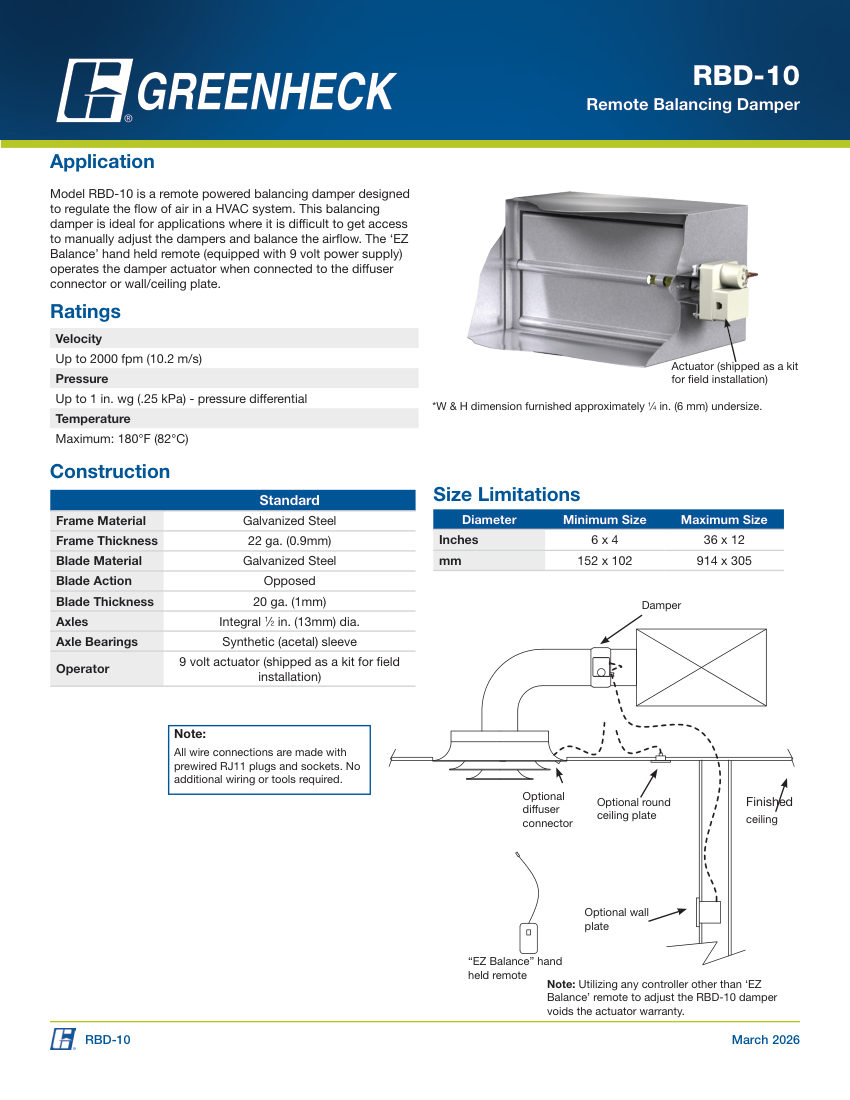

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | rbd-10 |
|---|---|
| Description | Greenheck Remote Balancing Damper (Balancing Damper). Model RBD-10. Regulates airflow in HVAC systems via remote actuator; Opposed blade action with integral 1/2 in. (13mm) axles; Maximum operating temperature 180°F (82°C); Uses 'EZ Balance' handheld remote with 9V power supply. material: Galvanized Steel |
| Connection size | 6x4 in. to 36x12 in. (152x102 mm to 914x305 mm) |
| Pressure Rating | Up to 1 in. wg (0.25 kPa) differential |
| Flow Rate | Up to 2000 fpm (10.2 m/s) |
| Mounting | Field installation |
| Dimensions | Frame thickness 22 ga. (0.9mm); Blade thickness 20 ga. (1mm). |
