DIV 23 · HVACDAMPERSCUT SHEET INDEXED
Greenheckrbd-15 remote balancing damperrbd-15
Greenheck Remote Balancing Damper (HVAC Dampers). Model RBD-15. Blade Type: 3V Opposed or Parallel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- rbd-15
- Product type
- Dampers
- MasterFormat
- 23

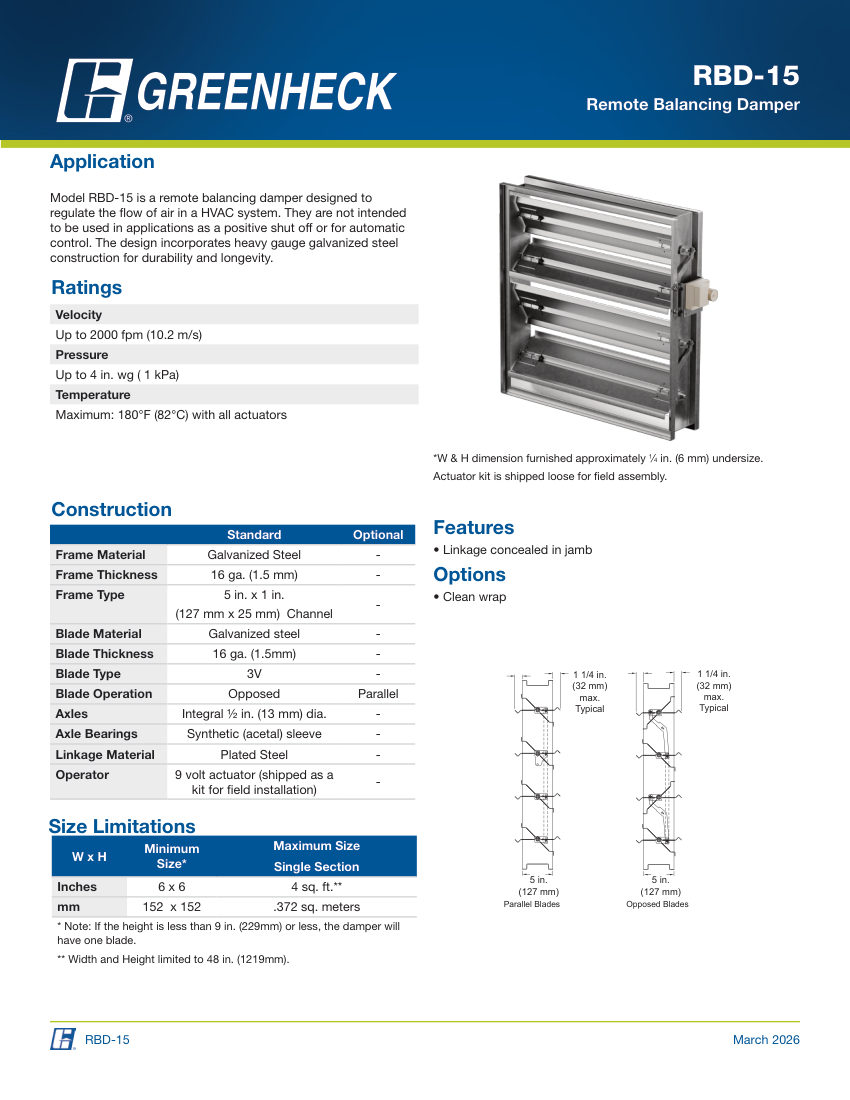

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | rbd-15 |
|---|---|
| Description | Greenheck Remote Balancing Damper (HVAC Dampers). Model RBD-15. Blade Type: 3V Opposed or Parallel |
| Frame Thickness | 16 ga. (1.5 mm) |
| Blade Thickness | 16 ga. (1.5 mm) |
| Max Temperature | 180°F (82°C). material: Galvanized Steel |
| Connection size | Min 6x6 in (152x152 mm), Max 48 in (1219 mm) W/H |
| Pressure Rating | Up to 4 in. wg (1 kPa) |
| Flow Rate | Up to 2000 fpm (10.2 m/s) |
| Finish | Galvanized |
| Mounting | Wall/Ceiling. |
- Official cut sheet, indexed
