DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckrbdr-50 round remote balancing damperrbdr-50

Greenheck Round Remote Balancing Damper (Balancing Damper). Model RBDR-50. Frame and blade material is 20 ga (1mm) galvanized steel; Maximum operating temperature is 180°F (82°C); Includes 9 Volt actuator and 'EZ Balance' remote control; Diameter dimension is furnished approximately 1/8 in (3 mm) undersize. material: Galvanized Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFrbdr-50.pdfData sheet

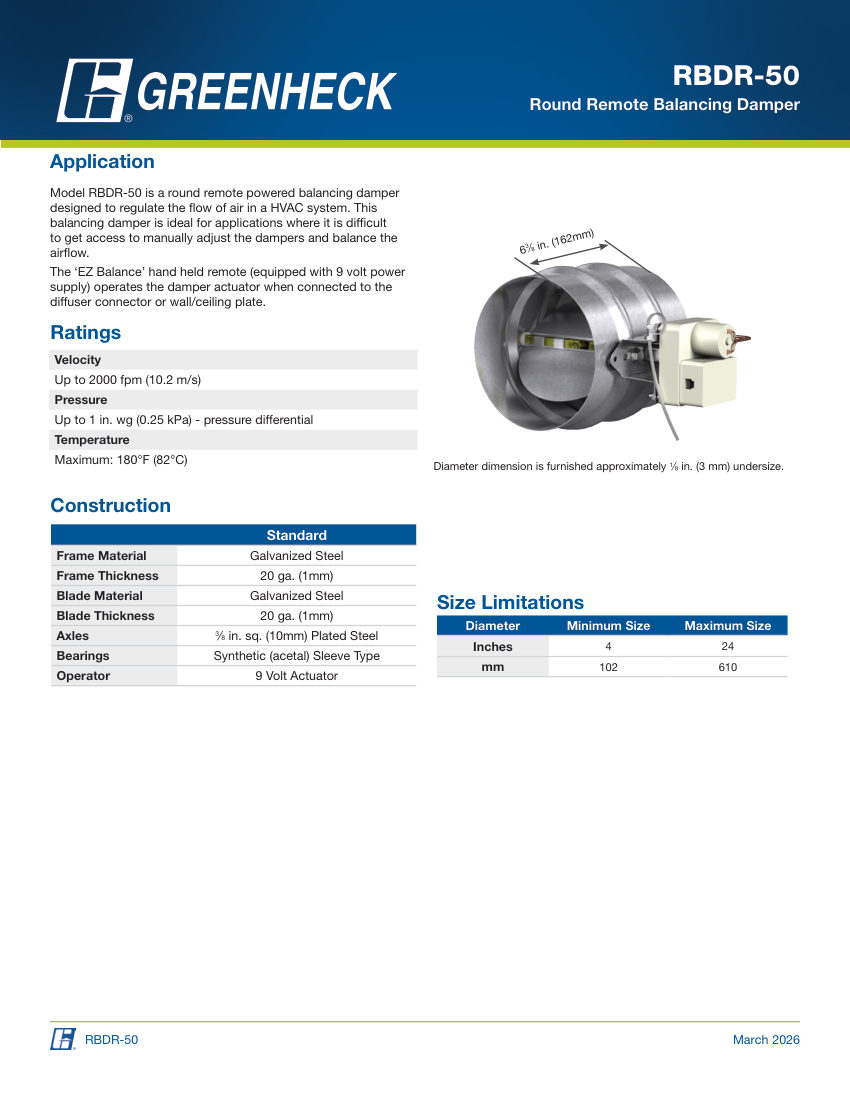

Greenheck rbdr-50 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
rbdr-50
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberrbdr-50
DescriptionGreenheck Round Remote Balancing Damper (Balancing Damper). Model RBDR-50. Frame and blade material is 20 ga (1mm) galvanized steel; Maximum operating temperature is 180°F (82°C); Includes 9 Volt actuator and 'EZ Balance' remote control; Diameter dimension is furnished approximately 1/8 in (3 mm) undersize. material: Galvanized Steel
Connection size4 to 24 in (102 to 610 mm)
End connectionRound
Pressure RatingUp to 1 in. wg (0.25 kPa)
Flow RateUp to 2000 fpm (10.2 m/s)
MountingRemote powered.
