Greenhecksebr-10 series barometric relief dampersebr-10

Greenheck Barometric Relief Damper. Model SEBR-10. Eccentrically pivoted backdraft damper for low velocity systems; On-blade counterweights for fine-tuned start-to-open operation; Ball bearings minimize friction; Temperature rating up to 180°F (82°C). material: 316SS Frame, 316SS Blade, TPE Blade Seal

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFsebr-10.pdfData sheet

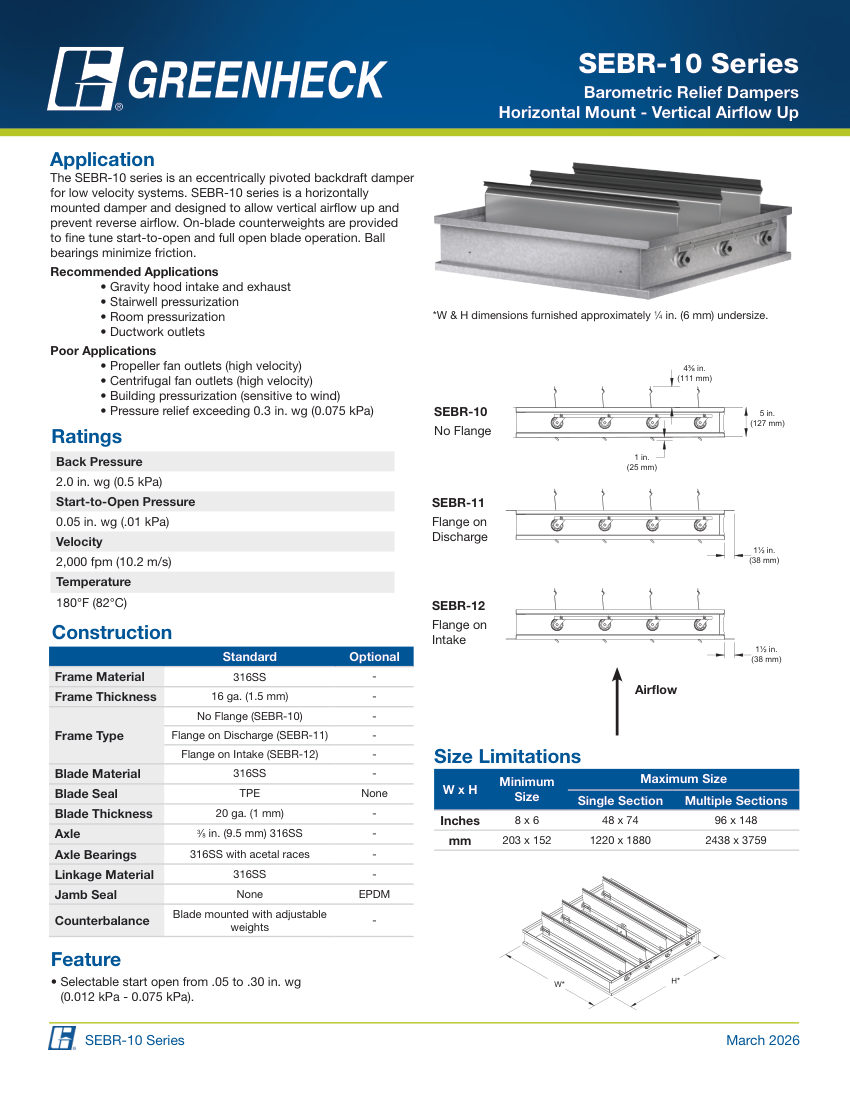

Greenheck sebr-10 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
sebr-10
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbersebr-10
DescriptionGreenheck Barometric Relief Damper. Model SEBR-10. Eccentrically pivoted backdraft damper for low velocity systems; On-blade counterweights for fine-tuned start-to-open operation; Ball bearings minimize friction; Temperature rating up to 180°F (82°C). material: 316SS Frame, 316SS Blade, TPE Blade Seal
Connection sizeMin 8x6 in (203x152 mm), Max Single 48x74 in (1220x1880 mm), Max Multi 96x148 in (2438x3759 mm)
End connectionNo Flange (SEBR-10), Flange on Discharge (SEBR-11), Flange on Intake (SEBR-12)
Pressure RatingBack Pressure 2.0 in. wg (0.5 kPa), Start-to-Open 0.05 in. wg (0.01 kPa)
