DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenhecksebr-30 series barometric relief damperssebr-30

Greenheck Barometric Relief Damper (SEBR-30 Series). Model SEBR-30. Eccentrically pivoted backdraft damper for low velocity systems; On-blade counterweights for fine-tuned start-to-open operation; Ball bearings minimize friction; Selectable start open pressure from 0.05 to 0.30 in. wg. material: 316SS Frame, 316SS Blade, TPE Blade Seal

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFsebr-30.pdfData sheet

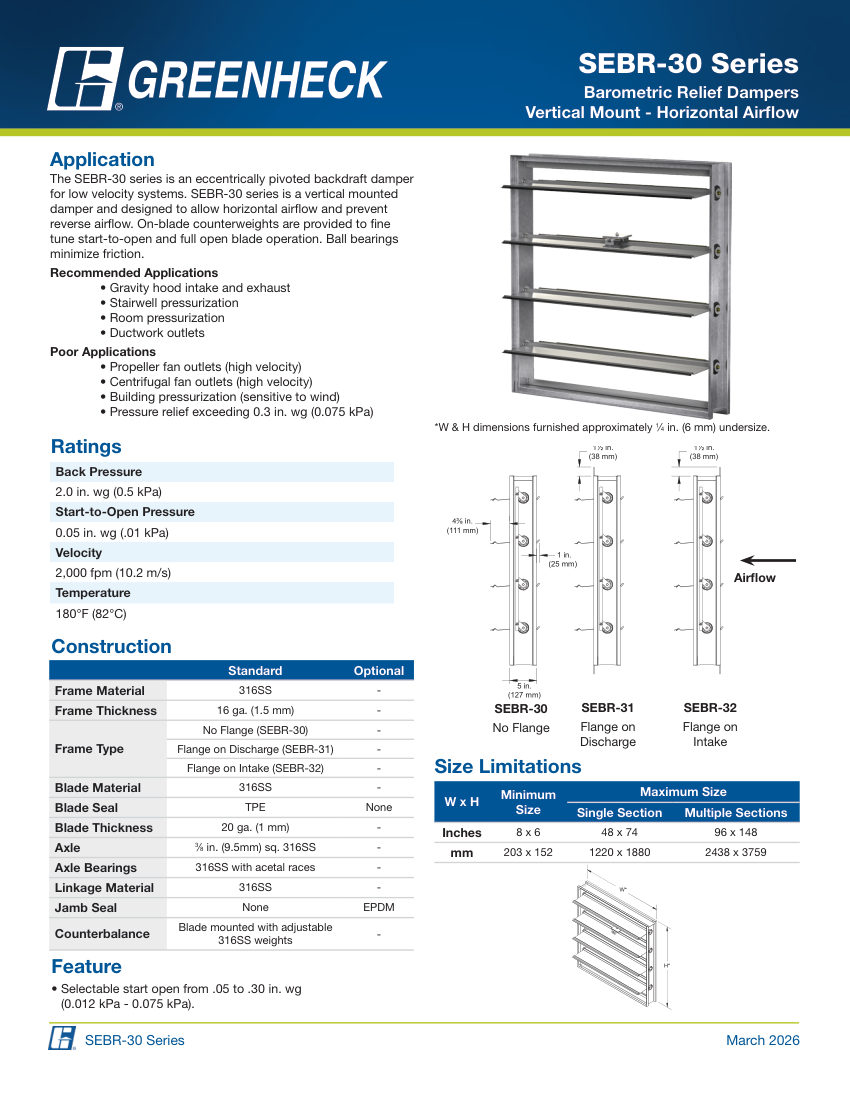

Greenheck sebr-30 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
sebr-30
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbersebr-30
DescriptionGreenheck Barometric Relief Damper (SEBR-30 Series). Model SEBR-30. Eccentrically pivoted backdraft damper for low velocity systems; On-blade counterweights for fine-tuned start-to-open operation; Ball bearings minimize friction; Selectable start open pressure from 0.05 to 0.30 in. wg. material: 316SS Frame, 316SS Blade, TPE Blade Seal
Connection sizeMin 8x6 in (203x152 mm), Max Single 48x74 in (1220x1880 mm), Max Multi 96x148 in (2438x3759 mm)
End connectionNo Flange (SEBR-30), Flange on Discharge (SEBR-31), Flange on Intake (SEBR-32)
Pressure RatingBack Pressure 2.0 in. wg (0.5 kPa), S
