DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenhecksecurity bars

Greenheck Security bars for dampers (Security Bars). Standard bar spacing is 6 in. (152 mm) center-to-center; Bar options include 1/2 in., 3/4 in., or 1 in. round steel; Frame constructed from 2 in. x 1-1/2 in. x 3/16 in. steel angle and 3/16 in. x 2 in. flat bar; Standard product is welded into a 10 ga. (3.5 mm) sleeve. material: Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFsecurity-bars.pdfData sheet

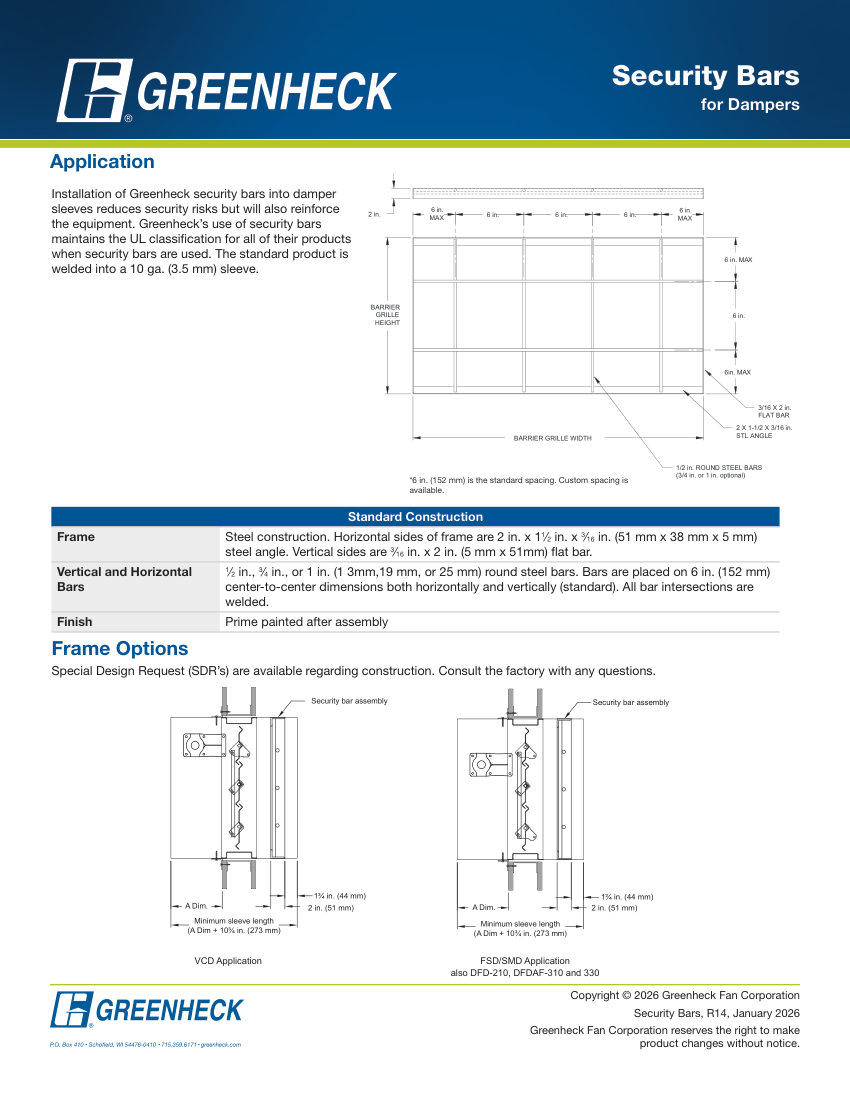

Greenheck security bars cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
security bars
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbersecurity bars
DescriptionGreenheck Security bars for dampers (Security Bars). Standard bar spacing is 6 in. (152 mm) center-to-center; Bar options include 1/2 in., 3/4 in., or 1 in. round steel; Frame constructed from 2 in. x 1-1/2 in. x 3/16 in. steel angle and 3/16 in. x 2 in. flat bar; Standard product is welded into a 10 ga. (3.5 mm) sleeve. material: Steel
End connectionWelded
FinishPrime painted
MountingInstalled into damper sleeves
DimensionsFrame: 2 in. x 1-1/2 in. x 3/16 in. angle (horizontal), 3/16 in. x 2 in. flat bar (vertical)
Bars1/2 in., 3/4 in., or 1 in. round
Spacing6 in. c-c; complia
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
