DIV 23 · HVACLOUVERSCUT SHEET INDEXED

Greenhecksed-501 stationary louversed-501

Greenheck Sightproof Louver (Louver). Model SED-501. Chevron blade design; Louver depth 5 in. (127 mm); Blade centers approx 2 in. (51 mm); Wind load rating 25 PSF (1.2 kPa). material: Extruded 6063-T5 aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFsed-501.pdfData sheet

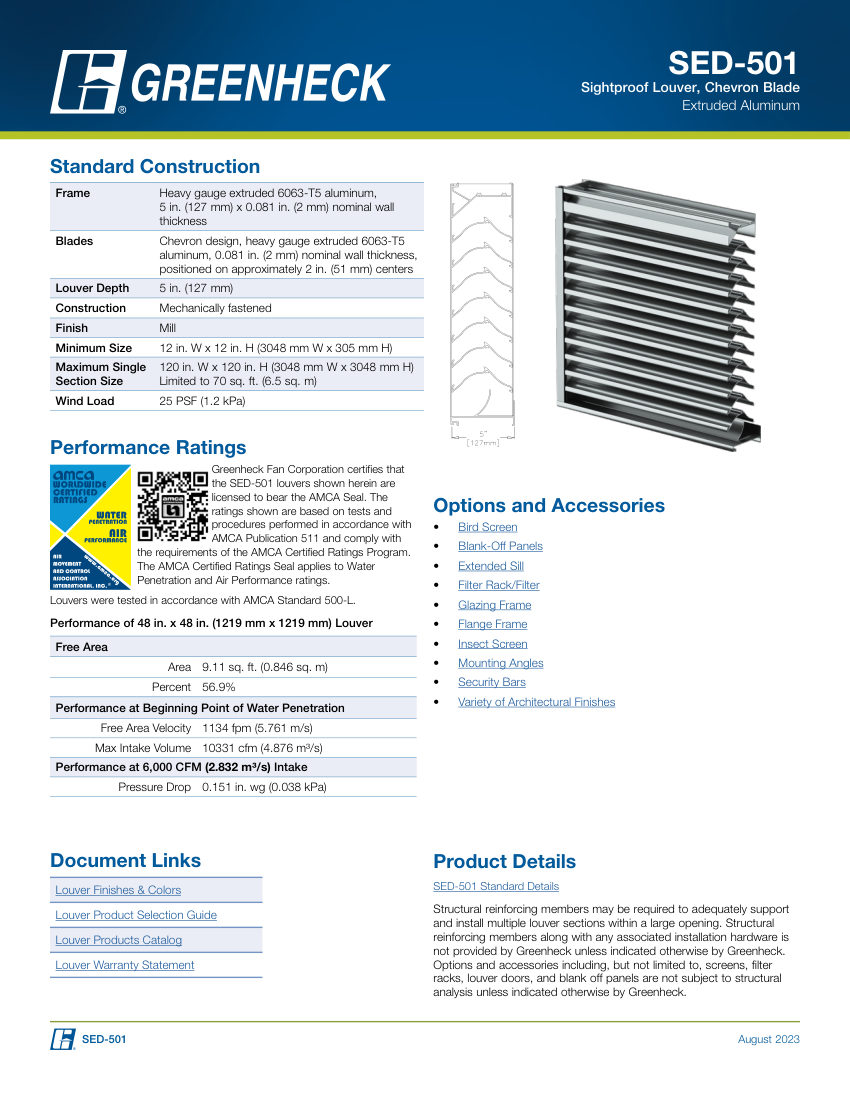

Greenheck sed-501 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
sed-501
Product type
Louvers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbersed-501
DescriptionGreenheck Sightproof Louver (Louver). Model SED-501. Chevron blade design; Louver depth 5 in. (127 mm); Blade centers approx 2 in. (51 mm); Wind load rating 25 PSF (1.2 kPa). material: Extruded 6063-T5 aluminum
Flow Rate10331 cfm (4.876 m³/s) max intake volume
FinishMill
MountingMechanically fastened
DimensionsMin 12 in. W x 12 in. H; Max 120 in. W x 120 in. H
ComplianceAMCA Certified Ratings Program.
