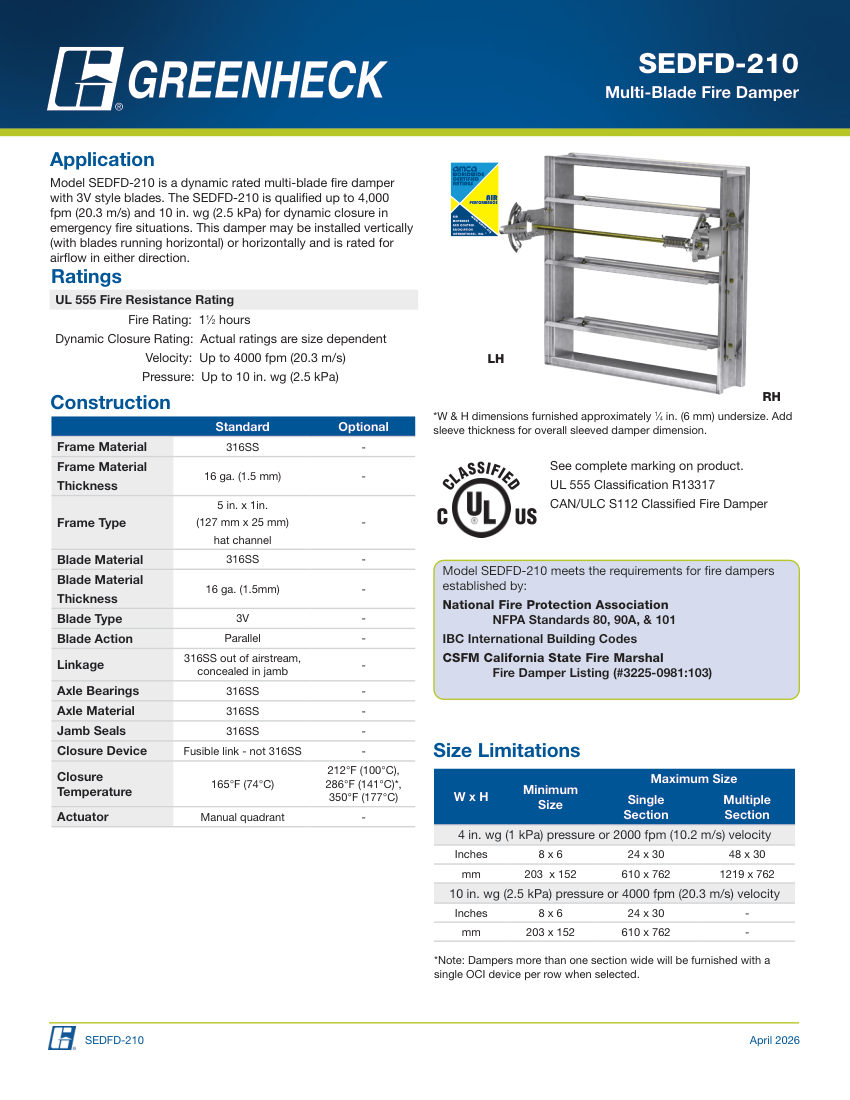

Name: Greenheck sedfd-210 multi-blade fire damper
Brand: Greenheck
SKU: sedfd-210

Greenheck Multi-Blade Fire Damper (Fire Damper). Model SEDFD-210. UL 555 Fire Resistance Rating: 1 1/2 hours

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	sedfd-210
Description	Greenheck Multi-Blade Fire Damper (Fire Damper). Model SEDFD-210. UL 555 Fire Resistance Rating: 1 1/2 hours
Blade Type	3V Parallel Action
Closure Device	Fusible Link (165°F, 212°F, 286°F, or 350°F options)
Frame Material	16 ga. (1.5 mm) 316SS Hat Channel. material: 316SS
Pressure Rating	Up to 10 in. wg (2.5 kPa)
Flow Rate	Up to 4000 fpm (20.3 m/s)
Mounting	Vertical or Horizontal
Dimensions	Max Single Section: 24x30 in (610x762 mm)
Max Multiple Section	48x30 in (1219x762 mm)
Compliance	UL 555, NFPA 80, 90A, 101, IBC, CSFM.
