Greenhecksesmd-201 smoke dampersesmd-201

Greenheck Smoke Damper. Model SESMD-201. Leakage Class I rated; 3V style opposed blades; Temperature rating up to 350°F (177°C); Frame thickness 16 ga. (1.5 mm). material: 316SS

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFsesmd-201.pdfData sheet

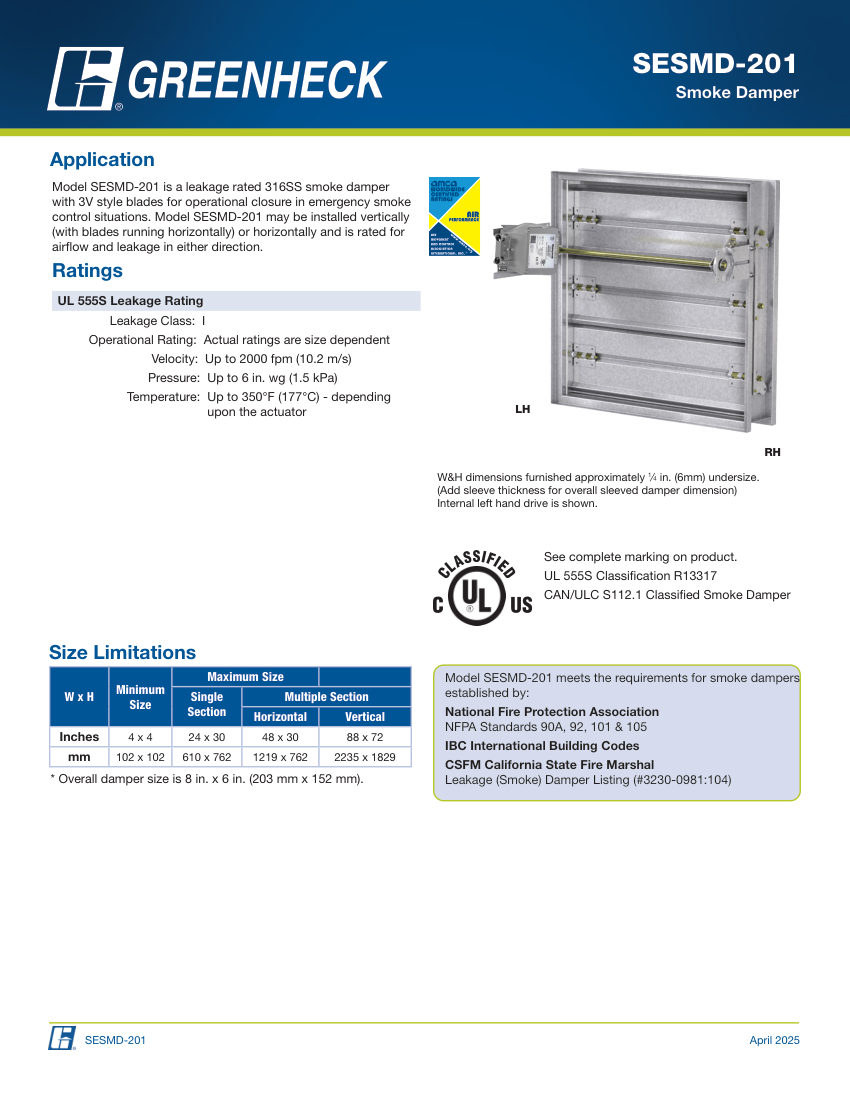

Greenheck sesmd-201 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
sesmd-201
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbersesmd-201
DescriptionGreenheck Smoke Damper. Model SESMD-201. Leakage Class I rated; 3V style opposed blades; Temperature rating up to 350°F (177°C); Frame thickness 16 ga. (1.5 mm). material: 316SS
Connection size4x4 in. to 88x72 in. (102x102 mm to 2235x1829 mm)
Pressure RatingUp to 6 in. wg (1.5 kPa)
Flow RateUp to 2000 fpm (10.2 m/s)
MountingVertical or Horizontal
DimensionsMin 4x4 in. (102x102 mm); Max Single 24x30 in. (610x762 mm); Max Multi 88x72 in. (2235x1829 mm).
