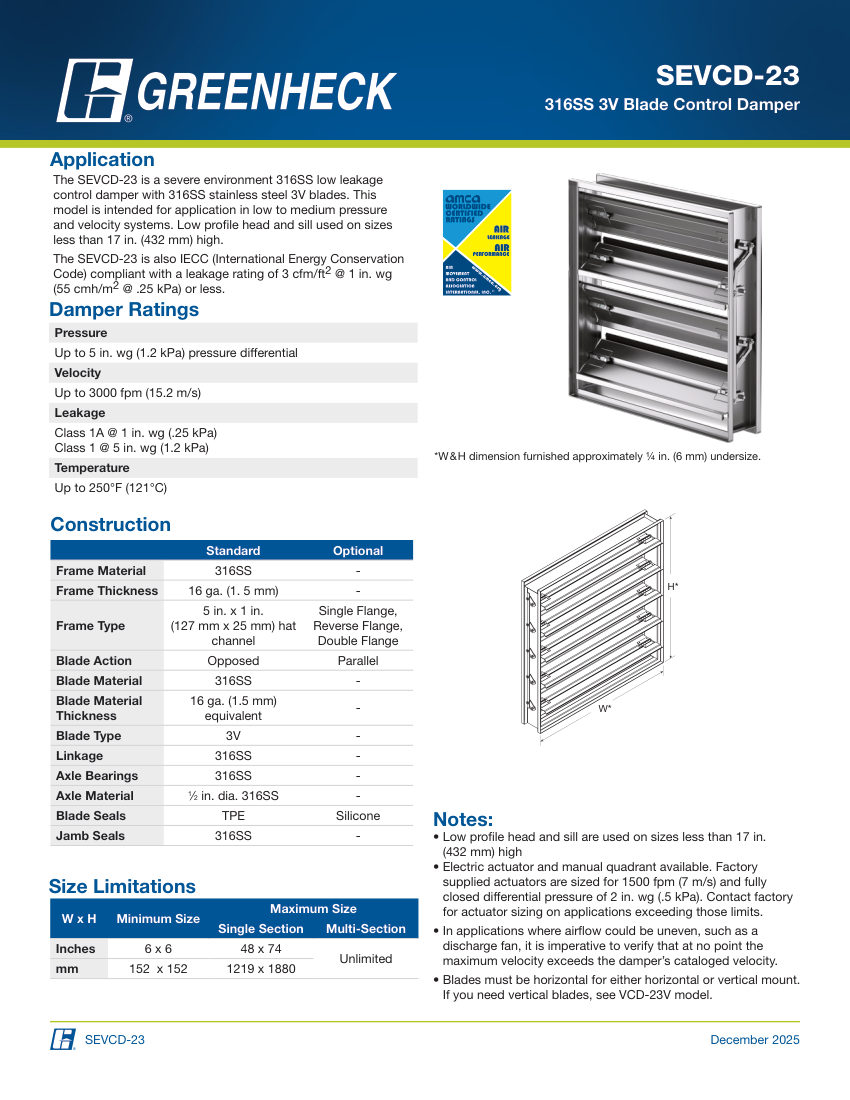

Name: Greenheck sevcd-23 3v blade control damper
Brand: Greenheck
SKU: sevcd-23

Greenheck 3V Blade Control Damper (Control Damper). Model SEVCD-23. 316SS frame and 3V blades

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	sevcd-23
Description	Greenheck 3V Blade Control Damper (Control Damper). Model SEVCD-23. 316SS frame and 3V blades
Leakage rating	3 cfm/ft2 @ 1 in. wg
Temperature rating	Up to 250°F (121°C)
Blade action	Opposed or Parallel. material: 316SS
Connection size	Min 6x6 in (152x152 mm); Max Single Section 48x74 in (1219x1880 mm)
End connection	5 in x 1 in (127 mm x 25 mm) hat channel frame
Pressure Rating	Up to 5 in. wg (1.2 kPa)
Flow Rate	Up to 3000 fpm (15.2 m/s)
Mounting	Horizontal or vertical (blades must be horizontal).
