Greenhecksevcd-33 airfoil blade control dampersevcd-33

Greenheck Airfoil Blade Control Damper (Control Damper). Model SEVCD-33. 316SS stainless steel airfoil blades and frame; Leakage rating Class 1A @ 1 in. wg (55 cmh/m2 @ .25 kPa); Temperature rating up to 250°F (121°C); Blade action available in Opposed or Parallel. material: 316SS

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFsevcd-33.pdfData sheet

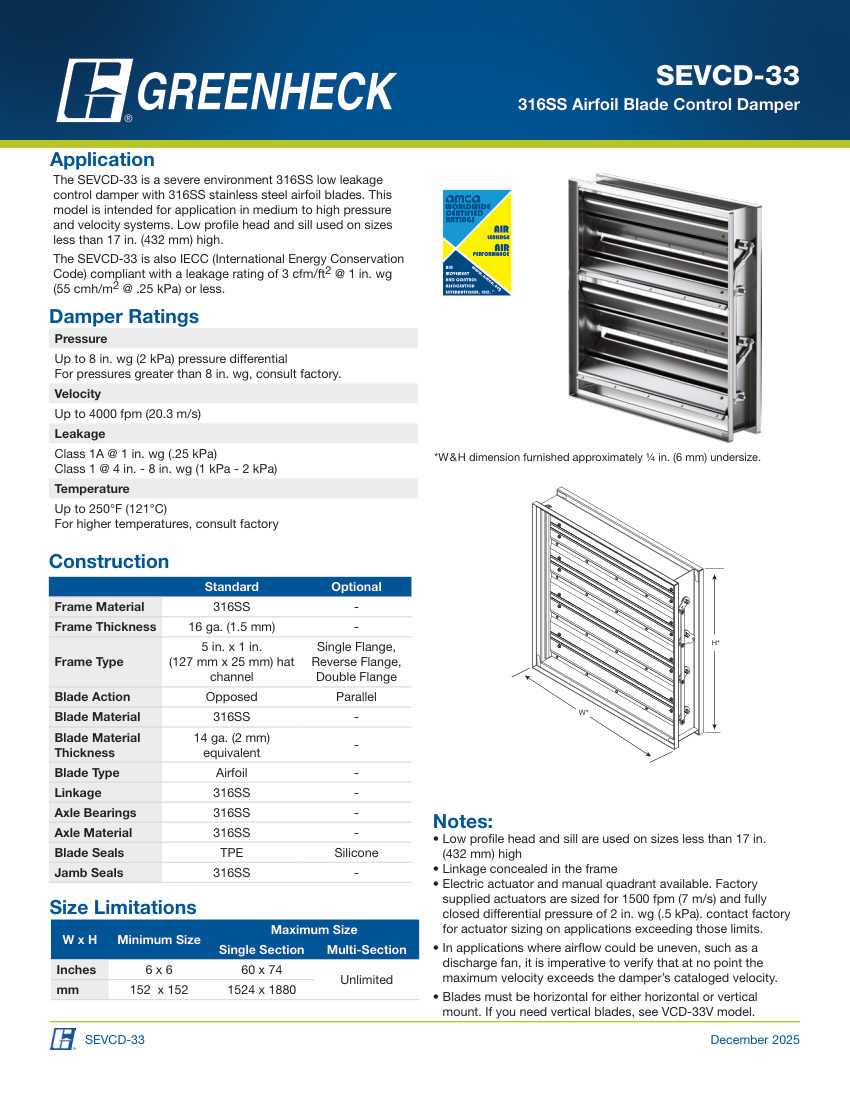

Greenheck sevcd-33 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
sevcd-33
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbersevcd-33
DescriptionGreenheck Airfoil Blade Control Damper (Control Damper). Model SEVCD-33. 316SS stainless steel airfoil blades and frame; Leakage rating Class 1A @ 1 in. wg (55 cmh/m2 @ .25 kPa); Temperature rating up to 250°F (121°C); Blade action available in Opposed or Parallel. material: 316SS
Connection sizeMin 6x6 in (152x152 mm), Max Single Section 60x74 in (1524x1880 mm)
End connection5 in. x 1 in. hat channel, Single Flange, Reverse Flange, Double Flange
Pressure RatingUp to 8 in. wg (2 kPa)
Flow RateUp to 4000 fpm (20.3 m/s)
MountingHorizontal blades, In-duct or slip-in.
