Greenhecksmd-201 smoke dampersmd-201
Greenheck Smoke Damper. Model SMD-201. Leakage Class I rated per UL 555S; 3V style parallel blades with silicone seals; Operational rating up to 2000 fpm and 6 in. wg; Temperature rating up to 350°F (177°C) depending on actuator. material: Galvanized steel frame and blades, 316SS axle bearings
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- smd-201
- Product type
- Dampers
- MasterFormat
- 23

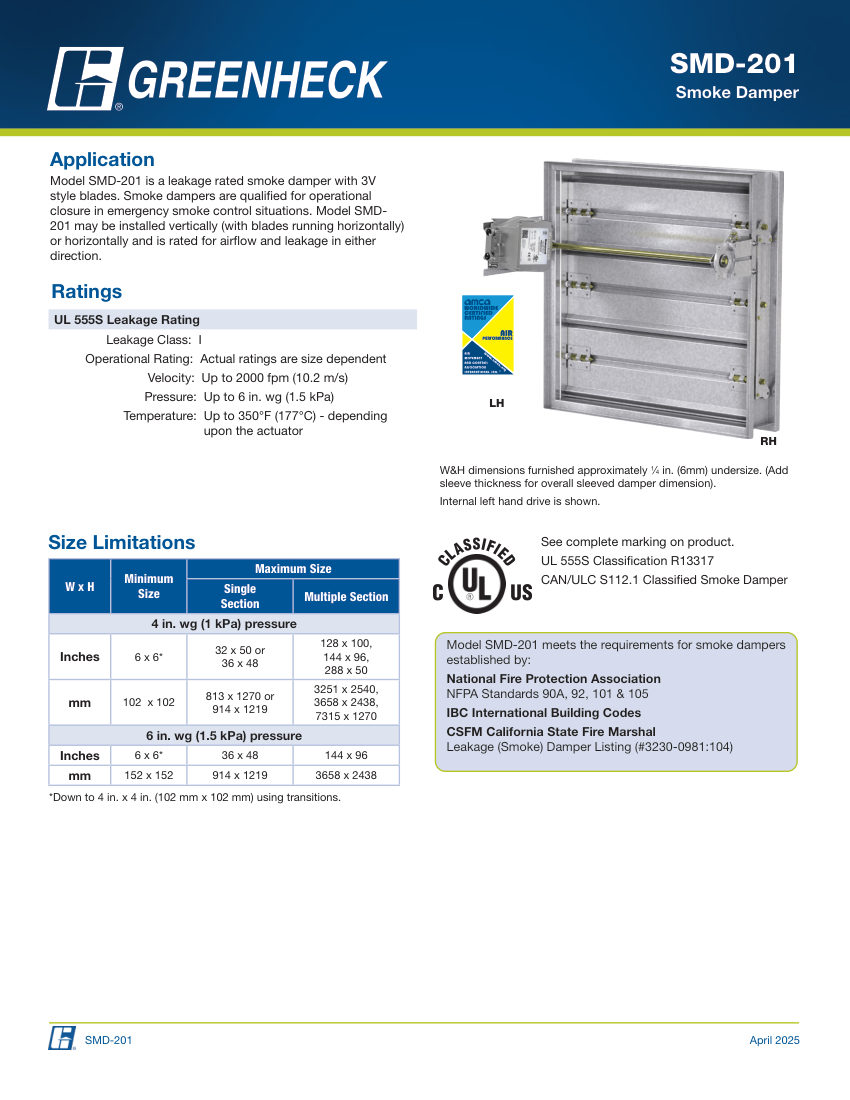

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | smd-201 |
|---|---|
| Description | Greenheck Smoke Damper. Model SMD-201. Leakage Class I rated per UL 555S; 3V style parallel blades with silicone seals; Operational rating up to 2000 fpm and 6 in. wg; Temperature rating up to 350°F (177°C) depending on actuator. material: Galvanized steel frame and blades, 316SS axle bearings |
| Connection size | Min 6x6 in (152x152 mm), Max 144x96 in (3658x2438 mm) multiple section |
| End connection | Vertical or Horizontal mounting |
| Pressure Rating | Up to 6 in. wg (1.5 kPa) |
| Flow Rate | Up to 2000 fpm (10.2 m/s) |
| Finish | Galvanized. |
