DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenhecksmd-201m smoke dampersmd-201m

Greenheck Modulating Smoke Damper (Smoke Dampers). Model SMD-201M. 3V style parallel blades with silicone blade seals; Leakage rated Class I per UL 555S; Rated for airflow and leakage in either direction; Temperature rating up to 250°F (121°C) depending on actuator. material: Galvanized steel frame and blades, 316SS axle bearings

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFsmd-201m.pdfData sheet

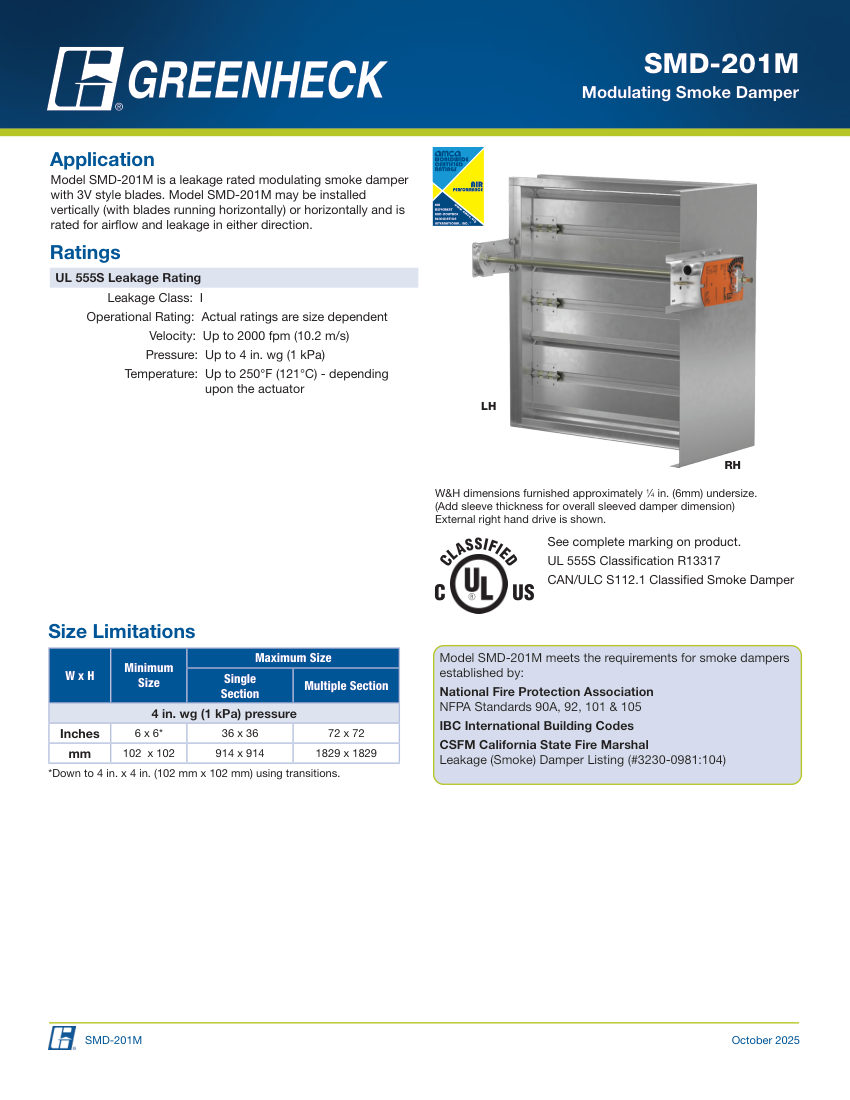

Greenheck smd-201m cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
smd-201m
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbersmd-201m
DescriptionGreenheck Modulating Smoke Damper (Smoke Dampers). Model SMD-201M. 3V style parallel blades with silicone blade seals; Leakage rated Class I per UL 555S; Rated for airflow and leakage in either direction; Temperature rating up to 250°F (121°C) depending on actuator. material: Galvanized steel frame and blades, 316SS axle bearings
Connection sizeMin 6x6 in (102x102 mm), Max Single 36x36 in (914x914 mm), Max Multi 72x72 in (1829x1829 mm)
Pressure RatingUp to 4 in. wg (1 kPa)
Flow RateUp to 2000 fpm (10.2 m/s)
FinishGalvanized
MountingVertical or Horizontal.
