DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenhecksmd-202 smoke dampersmd-202

Greenheck Smoke Damper. Model SMD-202. Leakage Class II rated per UL 555S; 3V style parallel blades with silicone seals; Operational temperature up to 350°F (177°C); 16 ga. (1.5mm) galvanized steel construction. material: Galvanized steel frame and blades, 316SS axle bearings

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFsmd-202.pdfData sheet

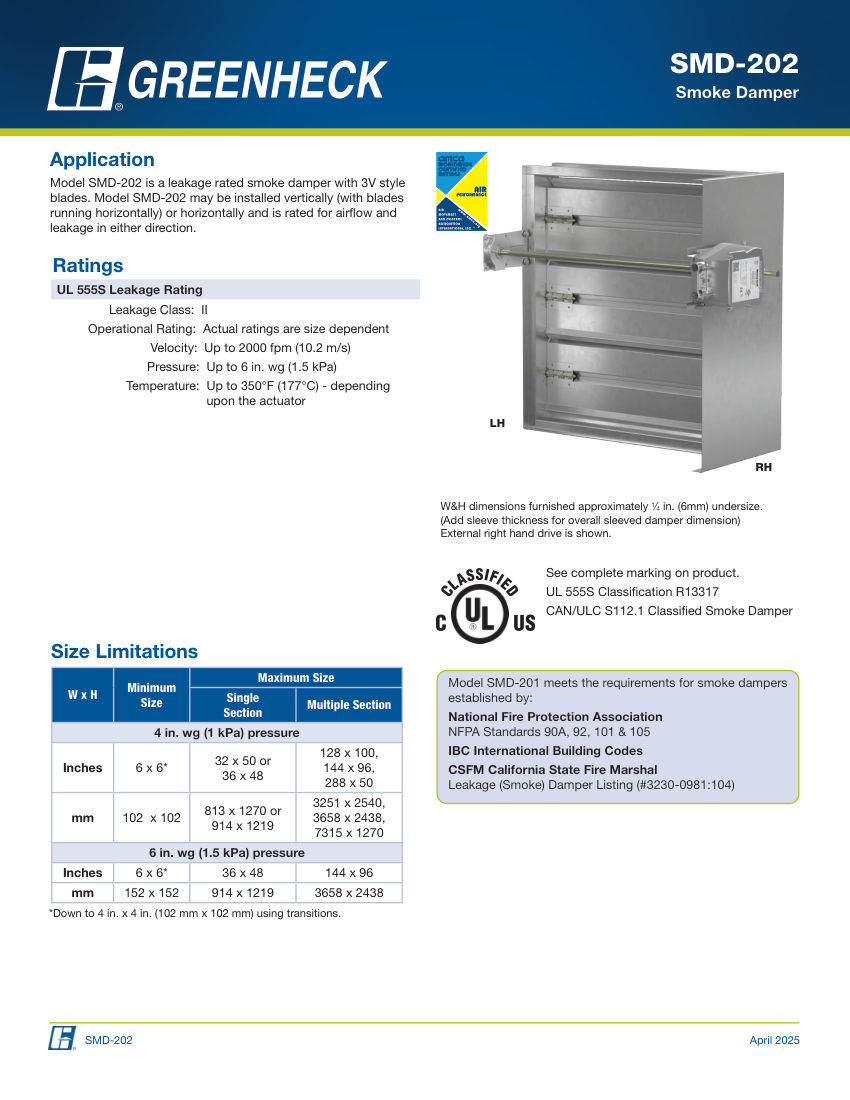

Greenheck smd-202 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
smd-202
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbersmd-202
DescriptionGreenheck Smoke Damper. Model SMD-202. Leakage Class II rated per UL 555S; 3V style parallel blades with silicone seals; Operational temperature up to 350°F (177°C); 16 ga. (1.5mm) galvanized steel construction. material: Galvanized steel frame and blades, 316SS axle bearings
Connection sizeMin 6x6 in (152x152 mm), Max Single 32x50 in (813x1270 mm) @ 4 in wg
Pressure RatingUp to 6 in. wg (1.5 kPa)
Flow RateUp to 2000 fpm (10.2 m/s)
FinishGalvanized
MountingVertical or Horizontal.
