DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenhecksmd-301v smoke dampersmd-301v

Greenheck Smoke Damper. Model SMD-301V. Leakage Class I rated per UL 555S; Vertical opposed double skin airfoil blades; Frame thickness 16 ga (1.5 mm), Blade thickness 14 ga (2 mm); Silicone blade seals and stainless steel jamb seals. material: Galvanized steel frame and blades, 316SS axle bearings

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFsmd-301v.pdfData sheet

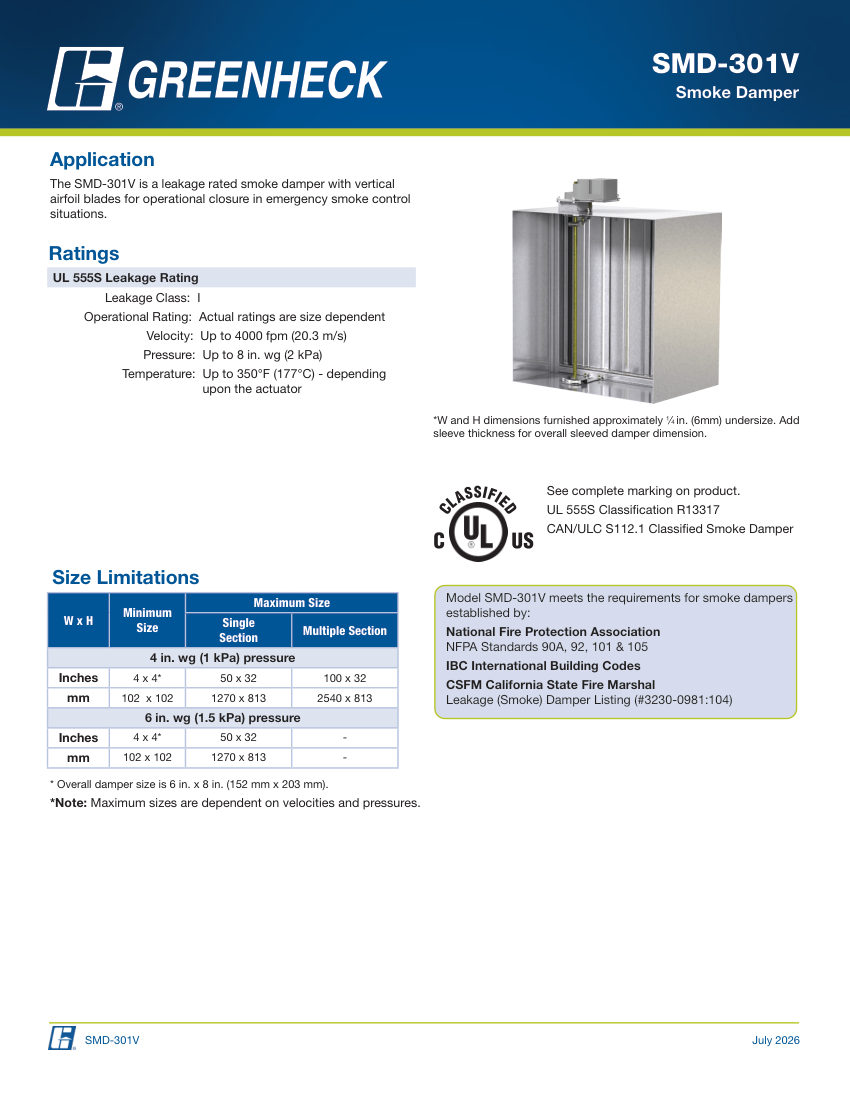

Greenheck smd-301v cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
smd-301v
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbersmd-301v
DescriptionGreenheck Smoke Damper. Model SMD-301V. Leakage Class I rated per UL 555S; Vertical opposed double skin airfoil blades; Frame thickness 16 ga (1.5 mm), Blade thickness 14 ga (2 mm); Silicone blade seals and stainless steel jamb seals. material: Galvanized steel frame and blades, 316SS axle bearings
Connection sizeMin 4x4 in (102x102 mm), Max 100x32 in (2540x813 mm)
Pressure RatingUp to 8 in. wg (2 kPa)
Flow RateUp to 4000 fpm (20.3 m/s)
FinishGalvanized
MountingVertical.
