Greenhecksmd-401ef smoke dampersmd-401ef

Greenheck Smoke Damper. Model SMD-401EF. Class I leakage rated per UL 555S; Extruded aluminum airfoil blades; Opposed blade action; Rated for bidirectional airflow. material: Extruded Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFsmd-401ef.pdfData sheet

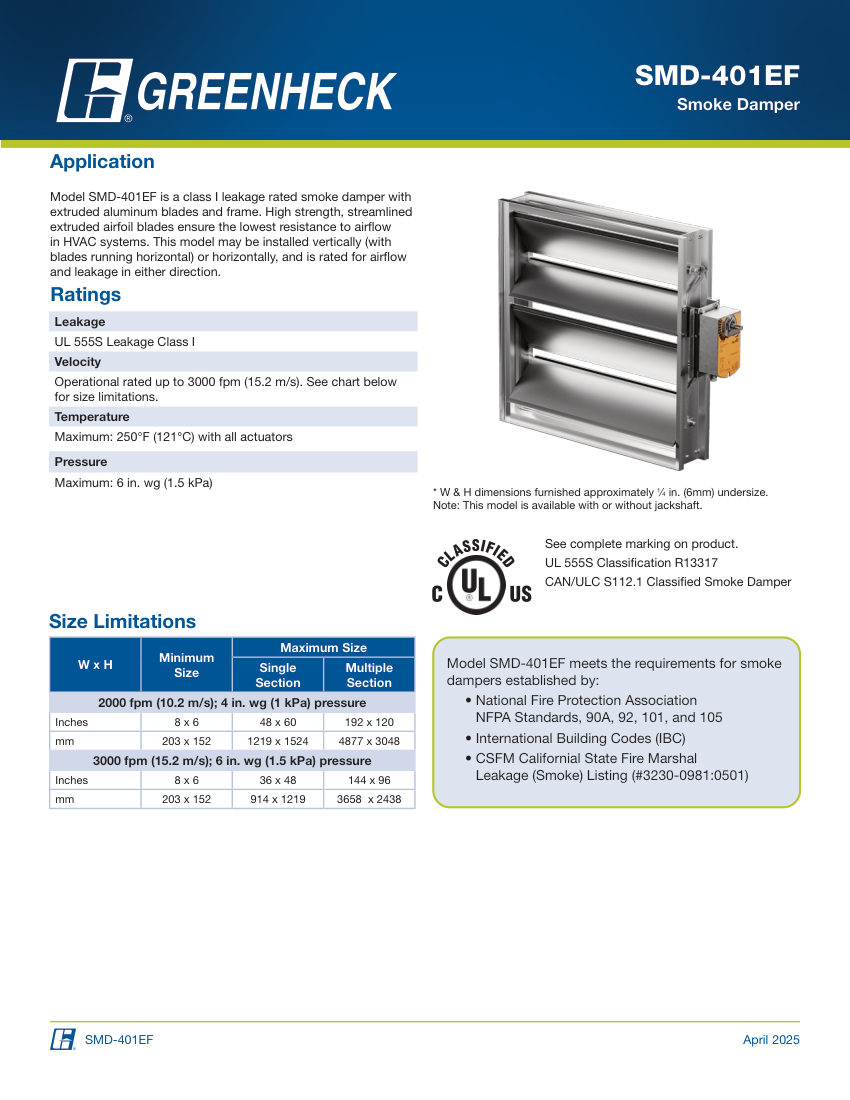

Greenheck smd-401ef cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
smd-401ef
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbersmd-401ef
DescriptionGreenheck Smoke Damper. Model SMD-401EF. Class I leakage rated per UL 555S; Extruded aluminum airfoil blades; Opposed blade action; Rated for bidirectional airflow. material: Extruded Aluminum
Pressure Rating6 in. wg (1.5 kPa)
Flow Rate3000 fpm (15.2 m/s)
MountingVertical or Horizontal
DimensionsMin 8x6 in (203x152 mm); Max Single 48x60 in (1219x1524 mm); Max Multiple 192x120 in (4877x3048 mm)
ComplianceUL 555S Class I, NFPA 90A/92/101/105, IBC, CSFM.
