Greenhecksmdr-501 round smoke dampersmdr-501

Greenheck Round Smoke Damper (Smoke Damper). Model SMDR-501. UL 555S Leakage Class I; Operational rating up to 4000 fpm (20.3 m/s); Pressure rating up to 4 in. wg (1 kPa); Temperature rating up to 350°F (177°C) depending on actuator. material: Galvanized steel frame, galvanized steel blade

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFsmdr-501.pdfData sheet

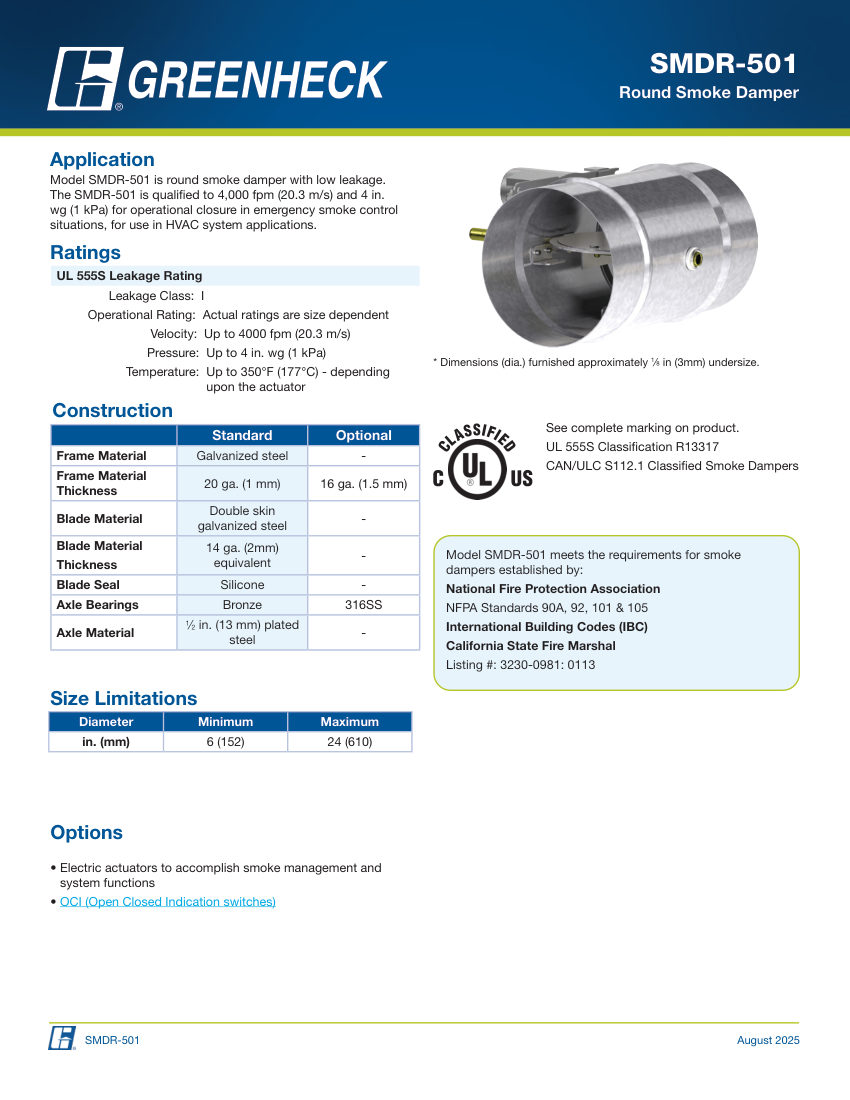

Greenheck smdr-501 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
smdr-501
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbersmdr-501
DescriptionGreenheck Round Smoke Damper (Smoke Damper). Model SMDR-501. UL 555S Leakage Class I; Operational rating up to 4000 fpm (20.3 m/s); Pressure rating up to 4 in. wg (1 kPa); Temperature rating up to 350°F (177°C) depending on actuator. material: Galvanized steel frame, galvanized steel blade
Connection size6 to 24 in. (152 to 610 mm) diameter
Pressure RatingUp to 4 in. wg (1 kPa)
Flow RateUp to 4000 fpm (20.3 m/s)
FinishGalvanized
DimensionsDiameter 6-24 in. (152-610 mm).
