DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckssdfd-350 dynamic rated fire damperssdfd-350

Greenheck Dynamic Rated Fire Damper (Fire Damper). Model SSDFD-350. 3-hour UL 555 fire rating; Dynamic rated for operational HVAC systems; Stainless steel frame and blades

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFssdfd-350.pdfData sheet

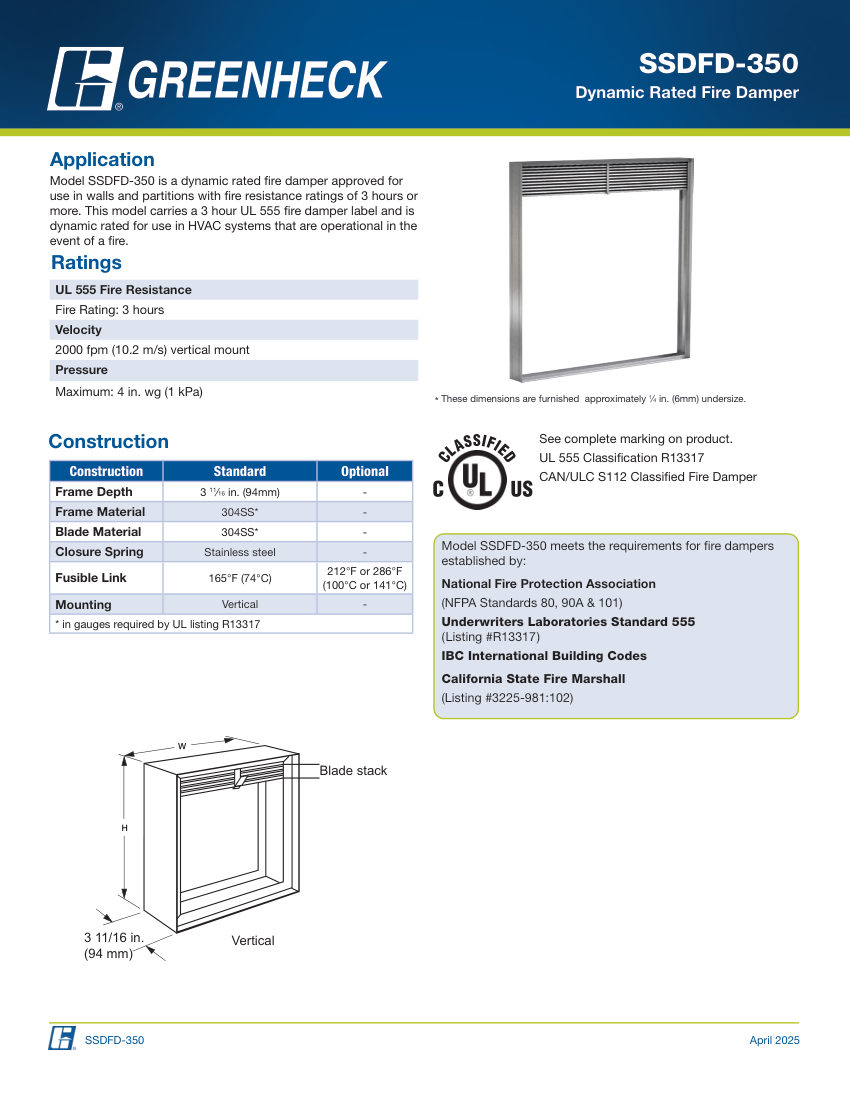

Greenheck ssdfd-350 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
ssdfd-350
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberssdfd-350
DescriptionGreenheck Dynamic Rated Fire Damper (Fire Damper). Model SSDFD-350. 3-hour UL 555 fire rating; Dynamic rated for operational HVAC systems; Stainless steel frame and blades
Fusible link options165°F, 212°F, or 286°F. material: 304SS
Connection size4x4 to 30x30 in (102x102 to 762x762 mm)
Pressure Rating4 in. wg (1 kPa)
Flow Rate2000 fpm (10.2 m/s)
MountingVertical
DimensionsFrame Depth: 3 11/16 in. (94mm).
