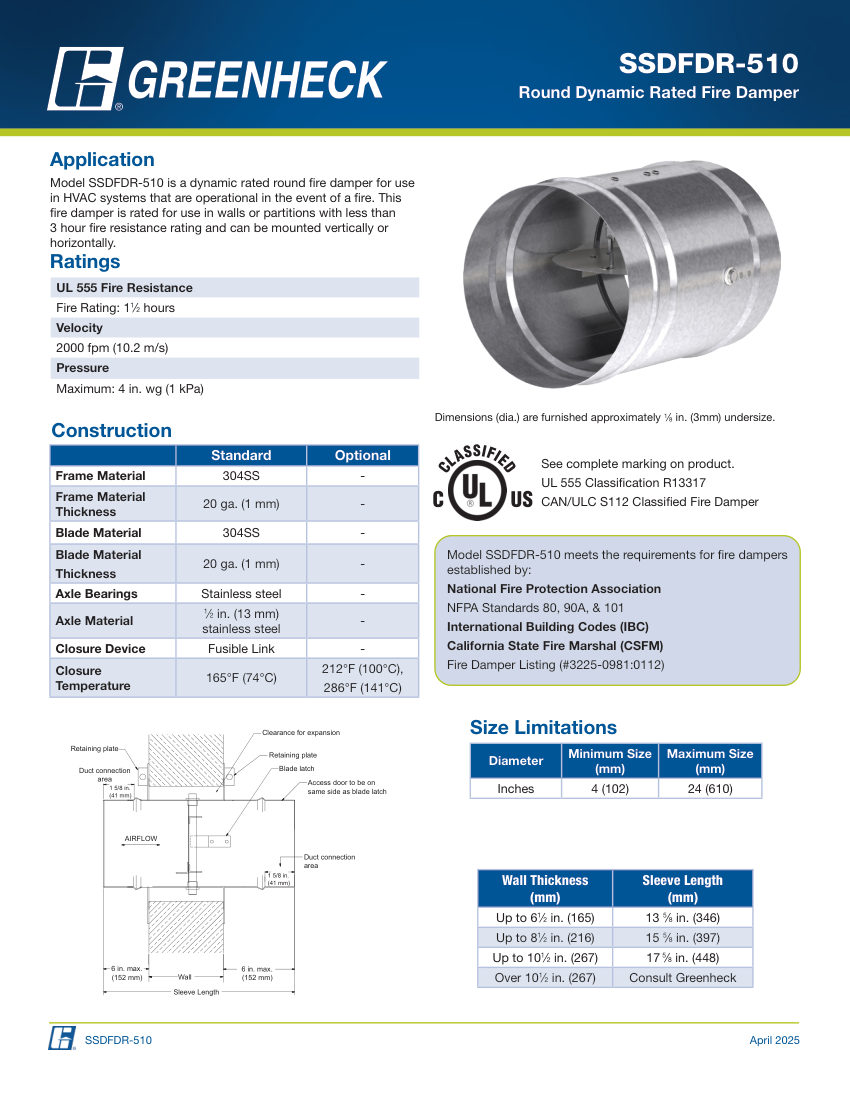

Greenheckssdfdr-510 round dynamic rated fire damperSSDFDR-510

Name: Greenheck ssdfdr-510 round dynamic rated fire damper
Brand: Greenheck
SKU: SSDFDR-510

Greenheck Round Dynamic Rated Fire Damper (Fire Damper). Model SSDFDR-510. UL 555 Fire Rating: 1 1/2 hours

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	SSDFDR-510
Description	Greenheck Round Dynamic Rated Fire Damper (Fire Damper). Model SSDFDR-510. UL 555 Fire Rating: 1 1/2 hours
Closure Device	Fusible Link (212°F/100°C, 165°F/74°C, 286°F/141°C)
Axle Bearings	Stainless steel 1/2 in. (13 mm)
Wall Thickness Range	Up to 10 1/2 in. (267 mm). material: 304SS Frame and Blades (20 ga. / 1 mm)
Connection size	4 in. (102 mm) to 24 in. (610 mm) Diameter
End connection	Duct connection area 1 5/8 in. (41 mm)
Pressure Rating	Maximum 4 in. wg (1 kPa)
Flow Rate	2000 fpm (10.2 m/s)
Mounting	Vertical or Horizontal.
