Greenheckssfsdr-511 round combination fire smoke damperSSFSDR-511
Greenheck Round Combination Fire Smoke Damper (Fire and Smoke Dampers). Model SSFSDR-511. Fire Rating: 1.5 hours
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- SSFSDR-511
- Product type
- Dampers
- MasterFormat
- 23

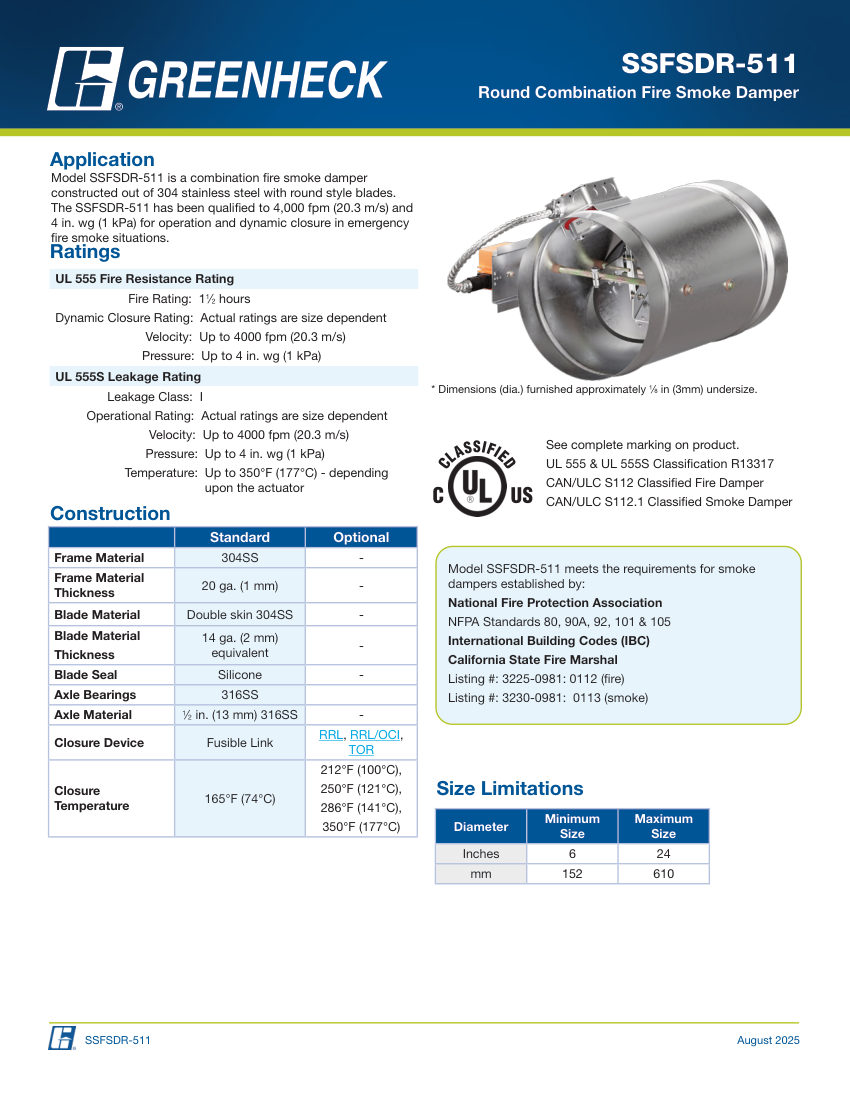

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | SSFSDR-511 |
|---|---|
| Description | Greenheck Round Combination Fire Smoke Damper (Fire and Smoke Dampers). Model SSFSDR-511. Fire Rating: 1.5 hours |
| Leakage Class | I |
| Blade Material | Double skin 304SS (14 ga. equivalent) |
| Closure Device | Fusible Link (165°F/74°C standard). material: 304 Stainless Steel |
| Connection size | 6 to 24 inches (152 to 610 mm) |
| End connection | Clamping Screw |
| Pressure Rating | 4 in. wg (1 kPa) |
| Flow Rate | 4000 fpm (20.3 m/s) |
| Mounting | Retainer Plate. |
