DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenhecksssmdr-501 round smoke damperSSSMDR-501

Greenheck Round Smoke Damper (Smoke Damper). Model SMDR-501. UL 555S Leakage Class I; Operational rating up to 4,000 fpm (20.3 m/s); Pressure rating up to 4 in. wg (1 kPa); Temperature rating up to 350°F (177°C) depending on actuator. material: 304SS Frame, Double skin 304SS Blade, 316SS Axle

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSSSMDR-501.pdfData sheet

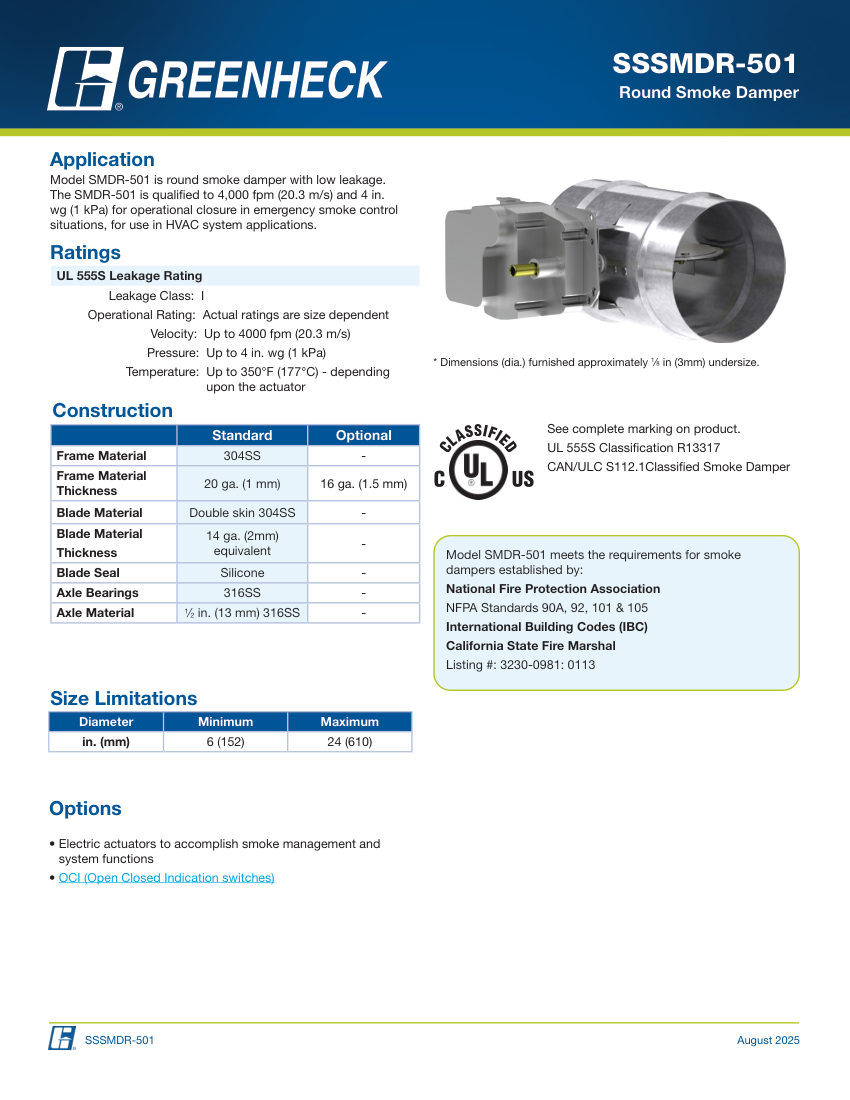

Greenheck SSSMDR-501 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
SSSMDR-501
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSSSMDR-501
DescriptionGreenheck Round Smoke Damper (Smoke Damper). Model SMDR-501. UL 555S Leakage Class I; Operational rating up to 4,000 fpm (20.3 m/s); Pressure rating up to 4 in. wg (1 kPa); Temperature rating up to 350°F (177°C) depending on actuator. material: 304SS Frame, Double skin 304SS Blade, 316SS Axle
Connection size6 in. (152 mm) to 24 in. (610 mm) diameter
Pressure RatingUp to 4 in. wg (1 kPa)
Flow RateUp to 4000 fpm (20.3 m/s)
DimensionsDiameter 6-24 in. (152-610 mm)
ComplianceUL 555S Leakage Class I, NFPA 90A, 92, 101 & 105, IBC, CAN/ULC S112.1.
