DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenhecksswdr-53 round backdraft dampersswdr-53

Greenheck Round Backdraft Damper (Dampers). Model SSWDR-53. Frame and blade material is 304 Stainless Steel; Blade thickness is 24 ga. (0.7 mm); Blade seals are closed cell neoprene/EPDM/SBR blend; Start open pressure for 12 inch model is 0.08 in. wg (0.02 kPa). material: 304 Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFsswdr-53.pdfData sheet

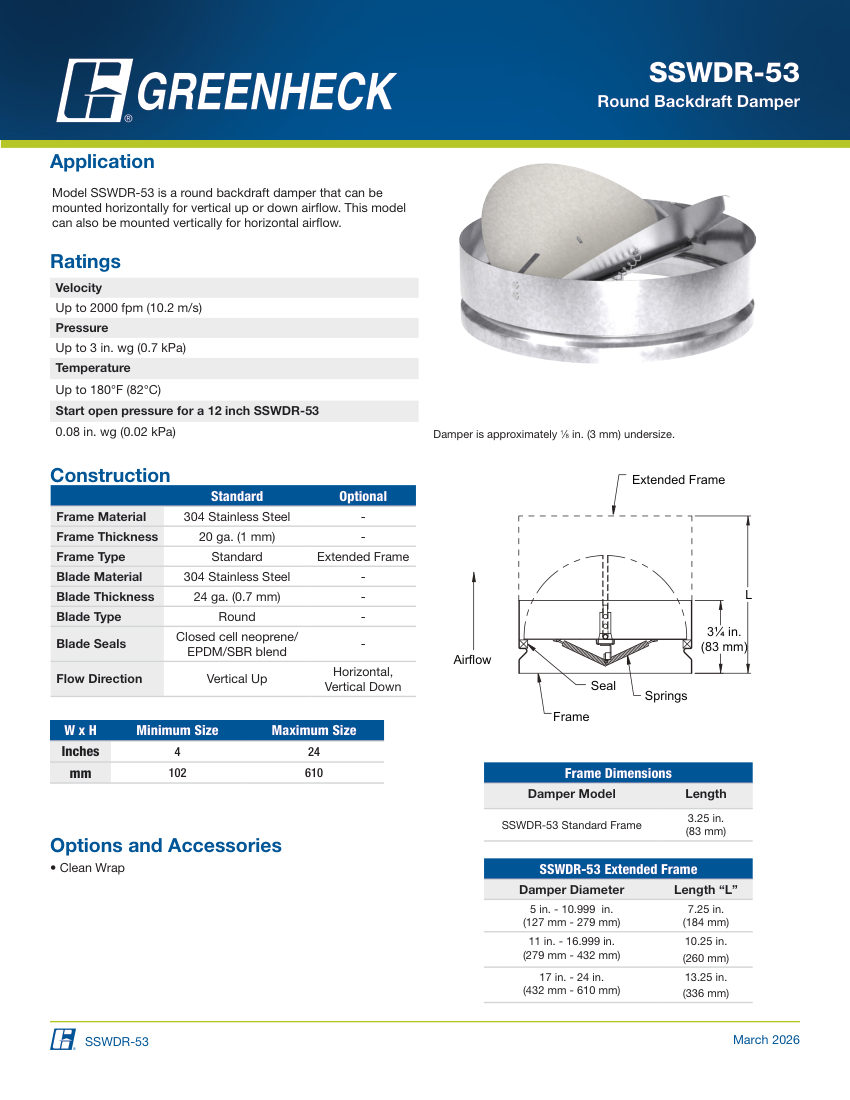

Greenheck sswdr-53 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
sswdr-53
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbersswdr-53
DescriptionGreenheck Round Backdraft Damper (Dampers). Model SSWDR-53. Frame and blade material is 304 Stainless Steel; Blade thickness is 24 ga. (0.7 mm); Blade seals are closed cell neoprene/EPDM/SBR blend; Start open pressure for 12 inch model is 0.08 in. wg (0.02 kPa). material: 304 Stainless Steel
Connection size4 in. to 24 in. (102 mm to 610 mm)
End connectionRound
Pressure RatingUp to 3 in. wg (0.7 kPa)
Flow RateUp to 2000 fpm (10.2 m/s)
MountingHorizontal or Vertical.
