Greenheckundersize transitions for vertical blade life safety dampers

Greenheck Undersized Transition Sleeve (Life Safety Dampers). Model FSD-311V / SMD-301V. Designed for FSD and SMD vertical blade dampers; Required when duct connections are smaller than the minimum allowable damper size; Fabricated in a sleeve with undersized transitions at both ends; Minimum allowable damper size is 6x8 inches (152 x 203 mm). connectionSize: Duct sizes smaller than 6x8 (152 x 203) mm

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFundersize-transitions-for-vertical-blade-life-safety-dampers.pdfData sheet

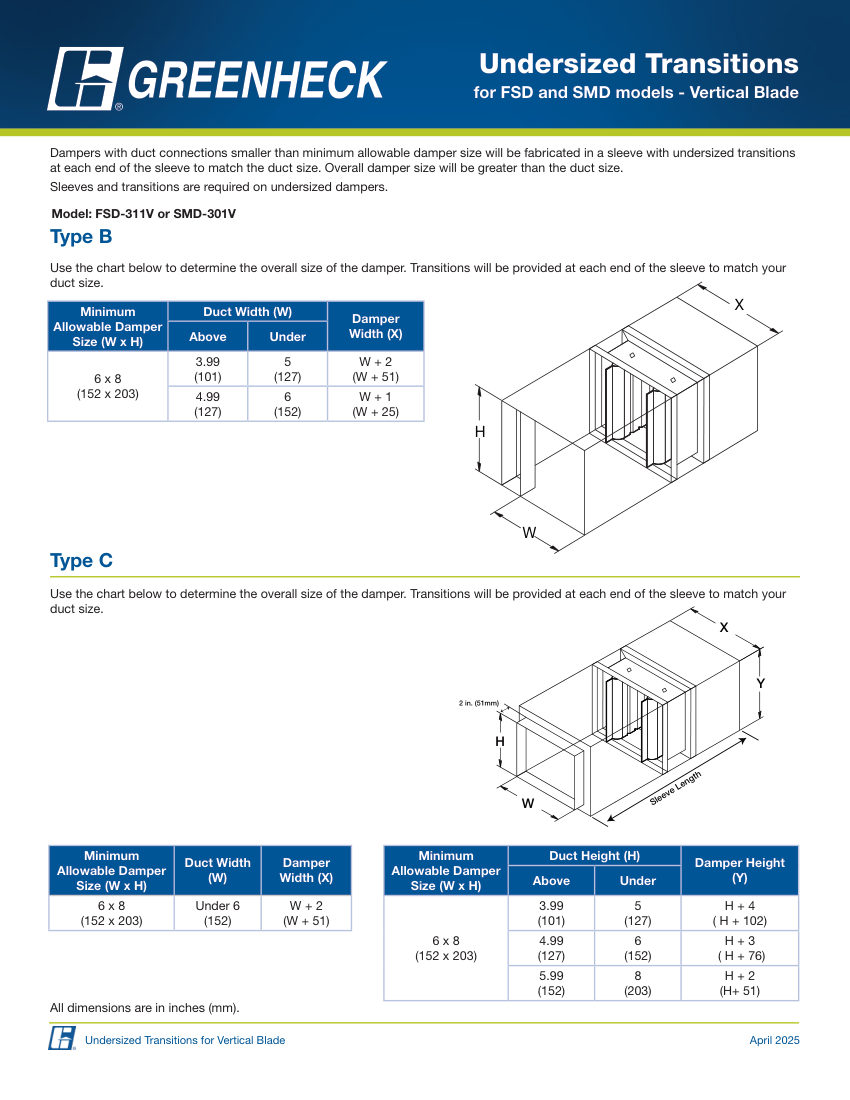

Greenheck undersize transitions for vertical blade life safety dampers cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
undersize transitions for vertical blade life safety dampers
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberundersize transitions for vertical blade life safety dampers
DescriptionGreenheck Undersized Transition Sleeve (Life Safety Dampers). Model FSD-311V / SMD-301V. Designed for FSD and SMD vertical blade dampers; Required when duct connections are smaller than the minimum allowable damper size; Fabricated in a sleeve with undersized transitions at both ends; Minimum allowable damper size is 6x8 inches (152 x 203 mm). connectionSize: Duct sizes smaller than 6x8 (152 x 203) mm
End connectionTransitions at each end of sleeve
MountingVertical Blade
DimensionsOverall damper size greater than duct size; calculated via Type B, C, or S charts.
