DIV 23 · HVACDAMPERSCUT SHEET INDEXED

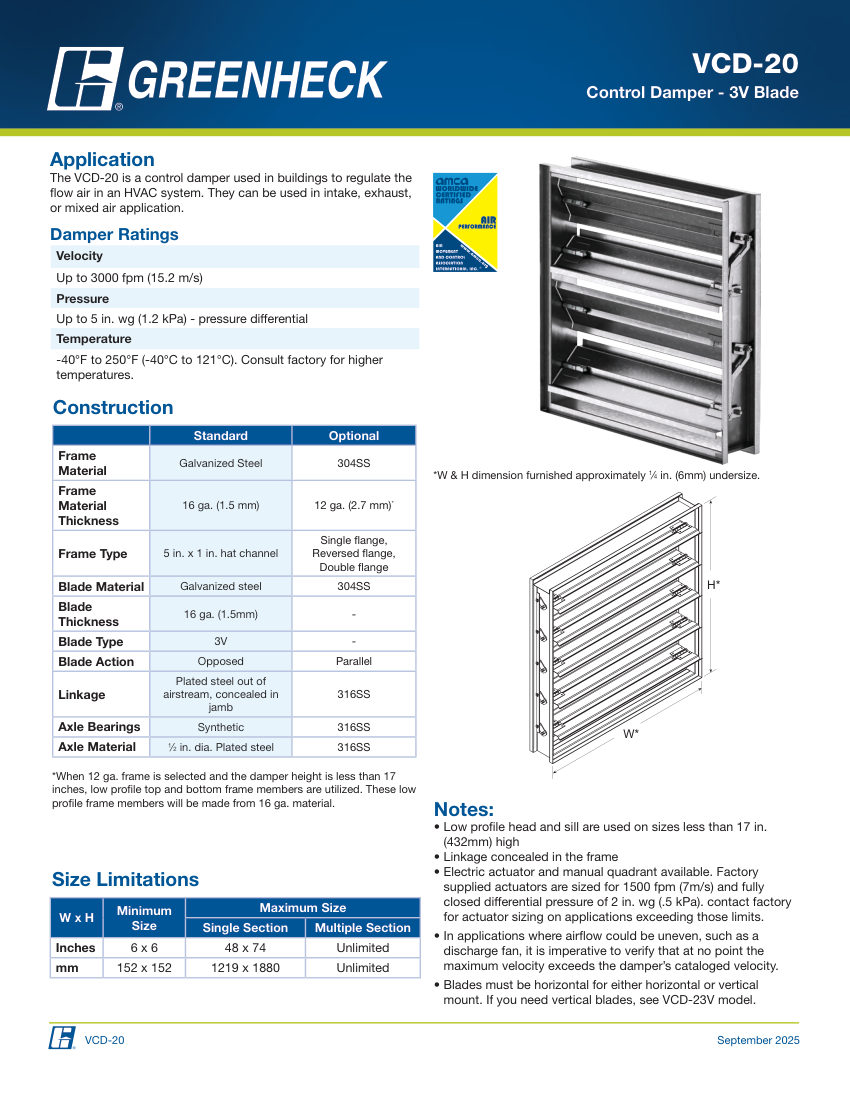

Greenheckvcd-20 control dampervcd-20

Name: Greenheck vcd-20 control damper
Brand: Greenheck
SKU: vcd-20

Greenheck Control Damper. Model VCD-20. 3V Blade Design; Opposed or Parallel Blade Action

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	vcd-20
Description	Greenheck Control Damper. Model VCD-20. 3V Blade Design; Opposed or Parallel Blade Action
Temperature Range	-40°F to 250°F (-40°C to 121°C)
Frame Thickness	16 ga (1.5 mm) Standard, 12 ga (2.7 mm) Optional. material: Galvanized Steel (Standard), 304SS (Optional)
Connection size	Min 6x6 in (152x152 mm), Max Single Section 48x74 in (1219x1880 mm)
End connection	5 in x 1 in hat channel (Standard), Single/Reversed/Double flange (Optional)
Pressure Rating	Up to 5 in. wg (1.2 kPa) differential
Flow Rate	Up to 3000 fpm (15.2 m/s)
Mounting	Horizontal or Vertical (Blades must be horizontal).
