Greenheckvcd-23 control dampervcd-23
Greenheck Low Leakage Control Damper (HVAC Dampers). Model VCD-23. Leakage rating of 3 cfm/ft2 at 1 in. wg or less; Temperature range -40°F to 250°F (-40°C to 121°C); Blade types include 3V with TPE or Silicone seals; Frame thickness 16 ga (1.5 mm) standard, 12 ga (2.7 mm) optional. material: Galvanized Steel (Standard), 304SS (Optional)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- vcd-23
- Product type
- Dampers
- MasterFormat
- 23

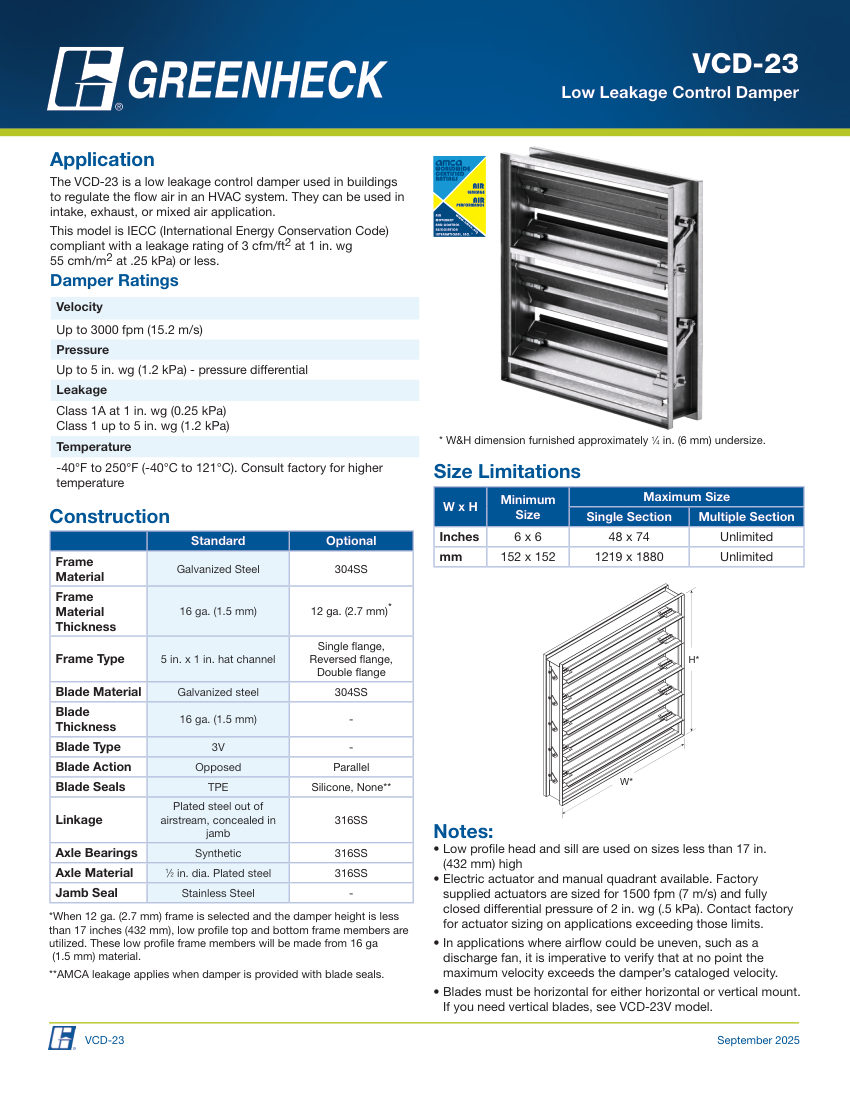

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | vcd-23 |
|---|---|
| Description | Greenheck Low Leakage Control Damper (HVAC Dampers). Model VCD-23. Leakage rating of 3 cfm/ft2 at 1 in. wg or less; Temperature range -40°F to 250°F (-40°C to 121°C); Blade types include 3V with TPE or Silicone seals; Frame thickness 16 ga (1.5 mm) standard, 12 ga (2.7 mm) optional. material: Galvanized Steel (Standard), 304SS (Optional) |
| Connection size | Min 6x6 in (152x152 mm), Max Single Section 48x74 in (1219x1880 mm) |
| End connection | Single flange, Double flange, Reversed flange, Channel frame |
| Pressure Rating | Up to 5 in. wg (1.2 kPa) |
| Flow Rate | Up to 3000 fpm (15.2 m/s) |
| Mounting | Horizont |
