Greenheckvcd-33 control dampervcd-33

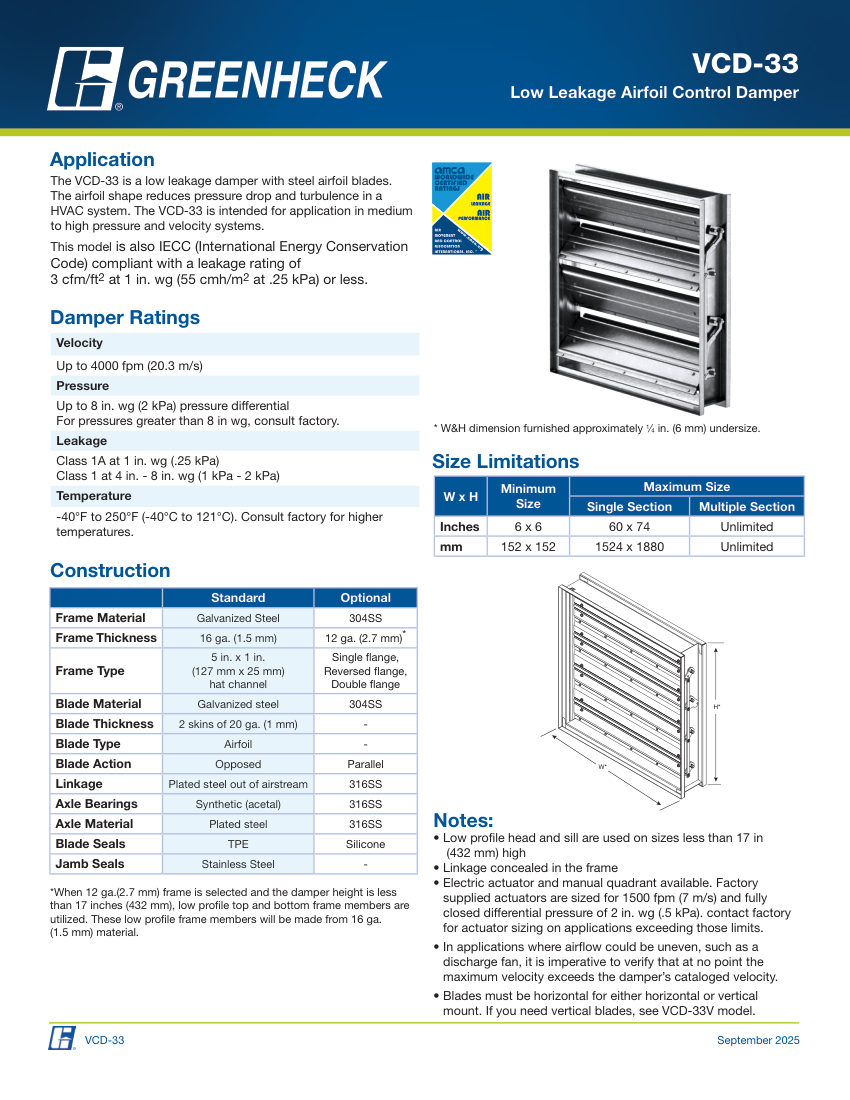

Name: Greenheck vcd-33 control damper
Brand: Greenheck
SKU: vcd-33

Greenheck Low Leakage Airfoil Control Damper (Control Damper). Model VCD-33. Airfoil blade design reduces pressure drop and turbulence

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	vcd-33
Description	Greenheck Low Leakage Airfoil Control Damper (Control Damper). Model VCD-33. Airfoil blade design reduces pressure drop and turbulence
Leakage rating	3 cfm/ft2 at 1 in. wg (55 cmh/m2 at .25 kPa) or less
Temperature range	-40°F to 250°F (-40°C to 121°C)
Blade action	Opposed (Standard) or Parallel (Optional). material: Galvanized Steel (Standard), 304SS (Optional)
Connection size	Min 6x6 in (152x152 mm), Max Single Section 60x74 in (1524x1880 mm)
End connection	5 in x 1 in hat channel (Standard), Single/Reversed/Double flange (Optional)
Pressure Rating	Up to 8 in. wg (2 kPa); flowRate:
