Greenheckvcd-33v control dampervcd-33v
Greenheck Vertical Airfoil Blade Control Damper (Control Damper). Model VCD-33V. Leakage rating of 3 cfm/ft² at 1 in. wg or less; Temperature range -40°F to 250°F (-40°C to 121°C); Airfoil blade design reduces pressure drop and turbulence; Opposed or parallel blade action available. material: Galvanized Steel (Standard), 304SS (Optional)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- vcd-33v
- Product type
- Dampers
- MasterFormat
- 23

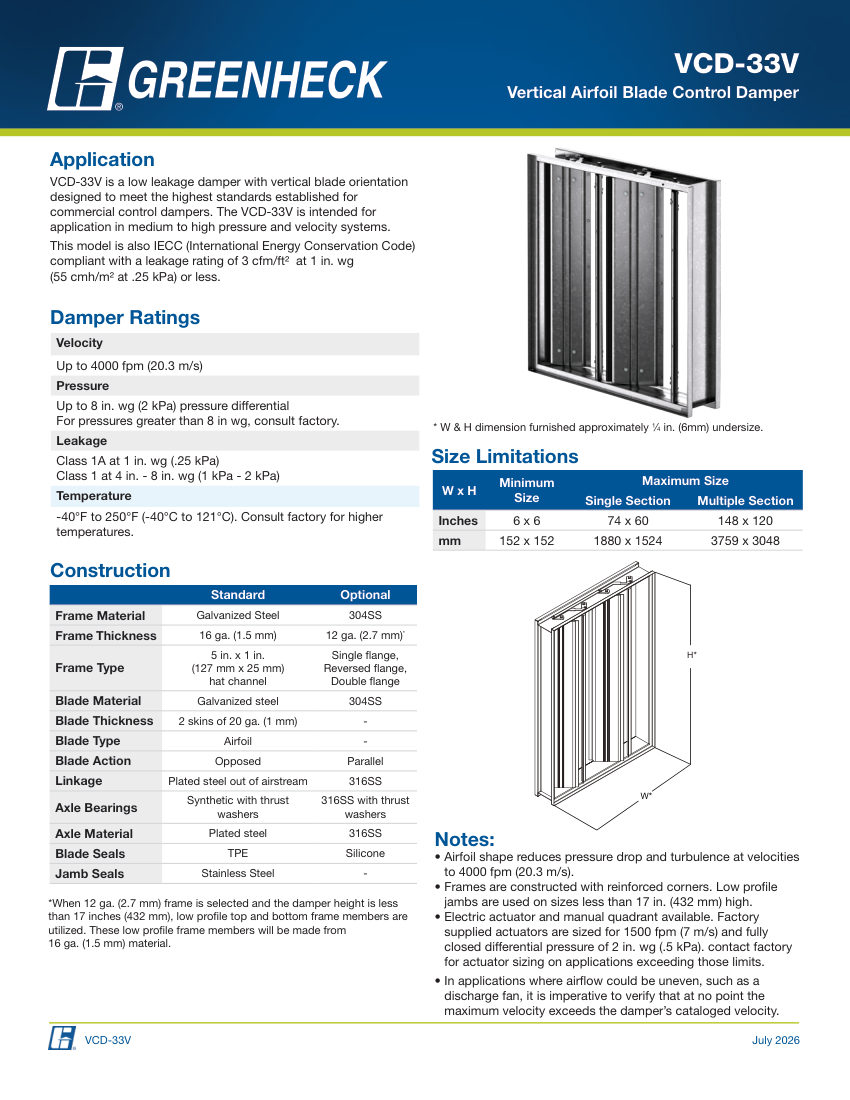

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | vcd-33v |
|---|---|
| Description | Greenheck Vertical Airfoil Blade Control Damper (Control Damper). Model VCD-33V. Leakage rating of 3 cfm/ft² at 1 in. wg or less; Temperature range -40°F to 250°F (-40°C to 121°C); Airfoil blade design reduces pressure drop and turbulence; Opposed or parallel blade action available. material: Galvanized Steel (Standard), 304SS (Optional) |
| Connection size | Min 6x6 in (152x152 mm), Max Single 74x60 in (1880x1524 mm), Max Multi 148x120 in (3759x3048 mm) |
| End connection | Hat Channel, Single Flange, Reversed Flange, Double Flange |
| Pressure Rating | Up to 8 in. wg (2 kPa) |
| Flow Rate | Up to 4000 fpm (20.3 |
