Greenheckvcd-34 control dampervcd-34

Greenheck Low Leakage Insulated Airfoil Control Damper (Control Damper). Model VCD-34. Leakage rating of 3 cfm/ft² at 1 in. wg or less; Temperature range -40°F to 250°F (-40°C to 121°C); Blade action available in Opposed or Parallel; Double skin blades with 1/2 in. (13 mm) fiberglass insulation. material: Galvanized Steel Frame, Galvanized Steel Blades, 1/2 in. Fiberglass Insulation

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFvcd-34.pdfData sheet

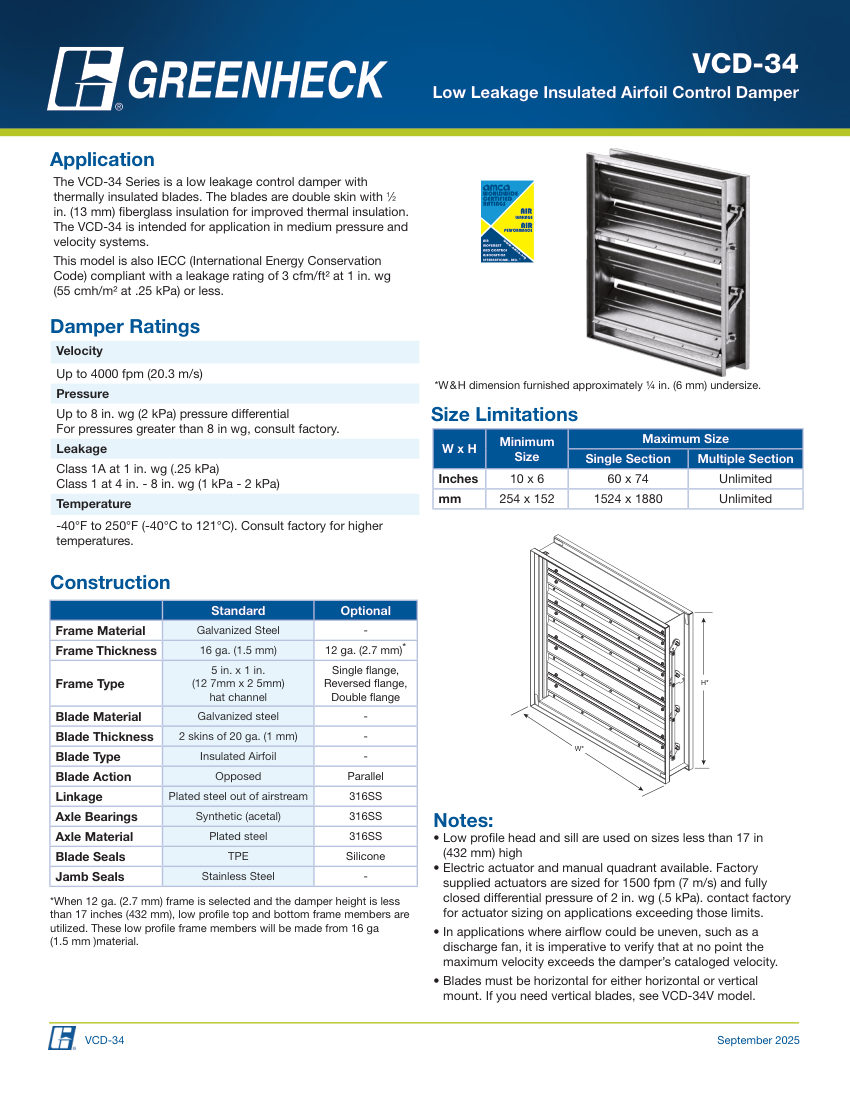

Greenheck vcd-34 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
vcd-34
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbervcd-34
DescriptionGreenheck Low Leakage Insulated Airfoil Control Damper (Control Damper). Model VCD-34. Leakage rating of 3 cfm/ft² at 1 in. wg or less; Temperature range -40°F to 250°F (-40°C to 121°C); Blade action available in Opposed or Parallel; Double skin blades with 1/2 in. (13 mm) fiberglass insulation. material: Galvanized Steel Frame, Galvanized Steel Blades, 1/2 in. Fiberglass Insulation
Connection sizeMin 10x6 in, Max Single Section 60x74 in
End connectionSingle Flange, Reversed Flange, Double Flange, or Channel Frame
Pressure RatingUp to 8 in. wg (2 kPa)
Flow RateUp to 4000 fpm (20.3 m/s)
