Greenheckvcd-40 control dampervcd-40

Greenheck Airfoil Blade Control Damper (Control Damper). Model VCD-40. Leakage rating of 3 cfm/ft2 at 1 in. wg (Class 1A); Temperature range -40°F to 250°F (-40°C to 121°C); Blades completely contained within frame for direct mounting; Opposed or Parallel blade action available. material: Extruded Aluminum (6063T5) blades, Aluminum frame

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFvcd-40.pdfData sheet

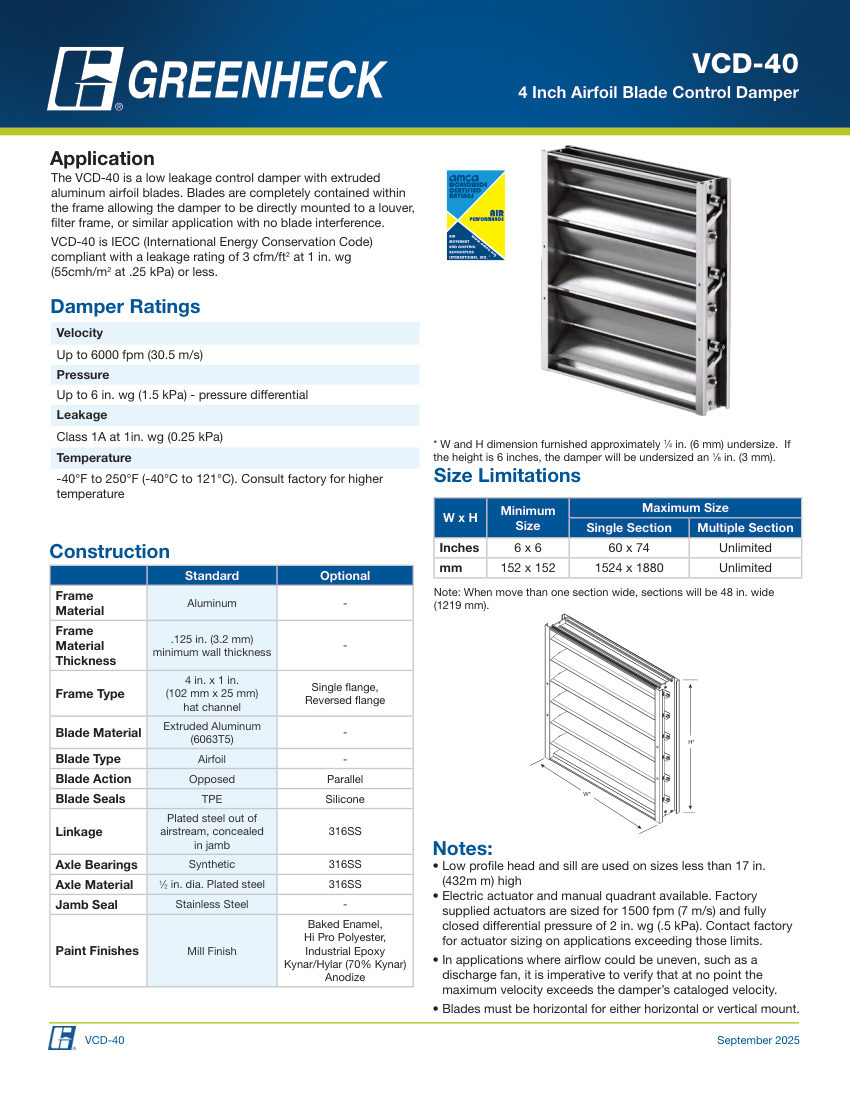

Greenheck vcd-40 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
vcd-40
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numbervcd-40
DescriptionGreenheck Airfoil Blade Control Damper (Control Damper). Model VCD-40. Leakage rating of 3 cfm/ft2 at 1 in. wg (Class 1A); Temperature range -40°F to 250°F (-40°C to 121°C); Blades completely contained within frame for direct mounting; Opposed or Parallel blade action available. material: Extruded Aluminum (6063T5) blades, Aluminum frame
Connection size4 inch blade depth
End connectionSingle flange, Reversed flange, or Channel frame
Pressure RatingUp to 6 in. wg (1.5 kPa) differential
Flow RateUp to 6000 fpm (30.5 m/s) velocity
FinishMill Finish, Baked Enamel, Hi Pro Polyester, Indu
