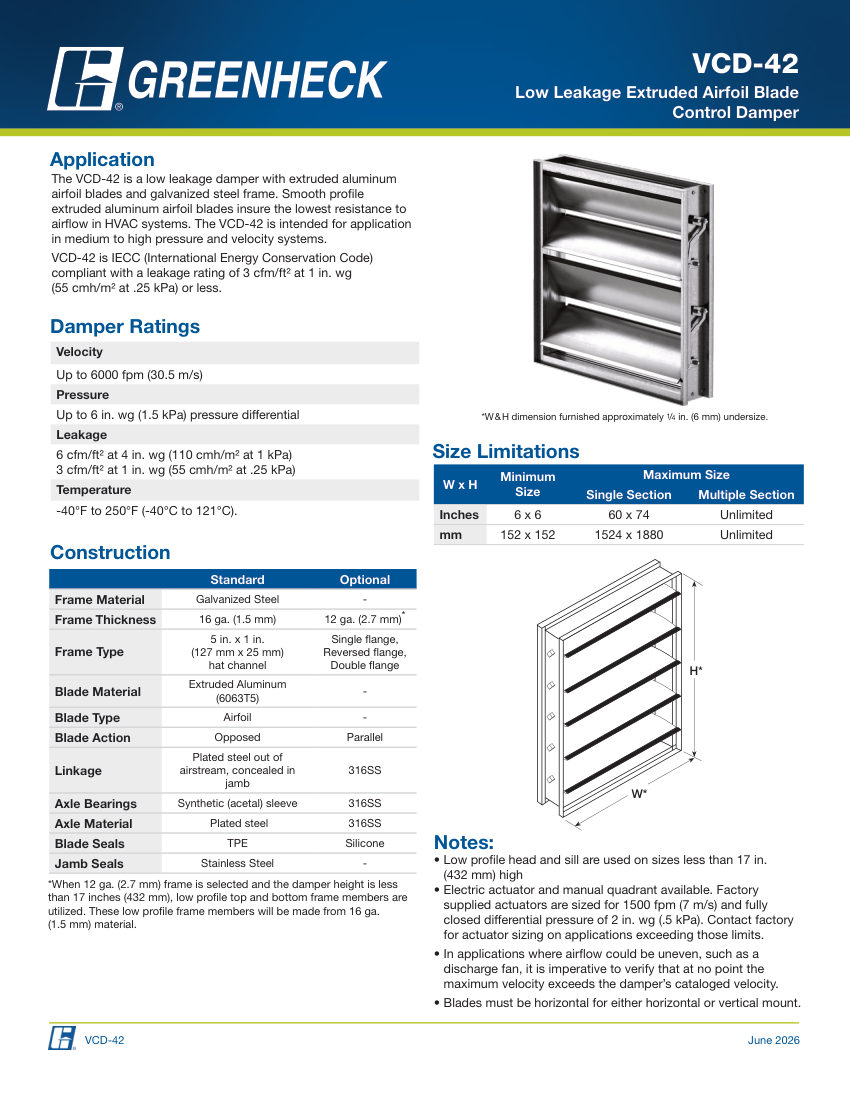

Greenheck vcd-42
submittal by Greenheck. Cut sheet, part numbers and a one-click submittal — indexed and ready in Submittal.app.
Greenheck Control Damper (HVAC Dampers). Model VCD-42. Low leakage rating: 3 cfm/ft² at 1 in. wg
Build a submittal around the Greenheck vcd-42 in minutes — describe the job or paste your schedule and the agent pulls the current cut sheet into a formatted package you can share for review and get quoted, fast.
Product details
| Blade action | Opposed (standard) or Parallel (optional) |
|---|---|
| Temperature range | -40°F to 250°F (-40°C to 121°C) |
| Frame thickness | 16 ga. (1.5 mm) standard, 12 ga. (2.7 mm) optional. material: Extruded Aluminum (6063T5) blades, Galvanized Steel frame |
| Connection size | Min 6x6 in (152x152 mm); Max Single Section 60x74 in (1524x1880 mm) |
| End connection | Channel frame, Single flange, Reversed flange, Double flange |
| Pressure Rating | Up to 6 in. wg (1.5 kPa) |
| Flow Rate | Up to 6000 fpm (30.5 m/s) |
| Mounting | Hori |
Part numbers / catalog
