Greenheckvcd-43v control dampervcd-43v
Greenheck Vertical Airfoil Blade Control Damper (Control Damper). Model VCD-43V. Leakage rating of 3 cfm/ft2 at 1 in. wg (55 cmh/m2 at .25 kPa); Temperature range -40°F to 250°F (-40°C to 121°C); Frame thickness 0.125 in (3.2 mm); Blade type is Airfoil. material: Aluminum frame, Extruded Aluminum blades
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- vcd-43v
- Product type
- Dampers
- MasterFormat
- 23

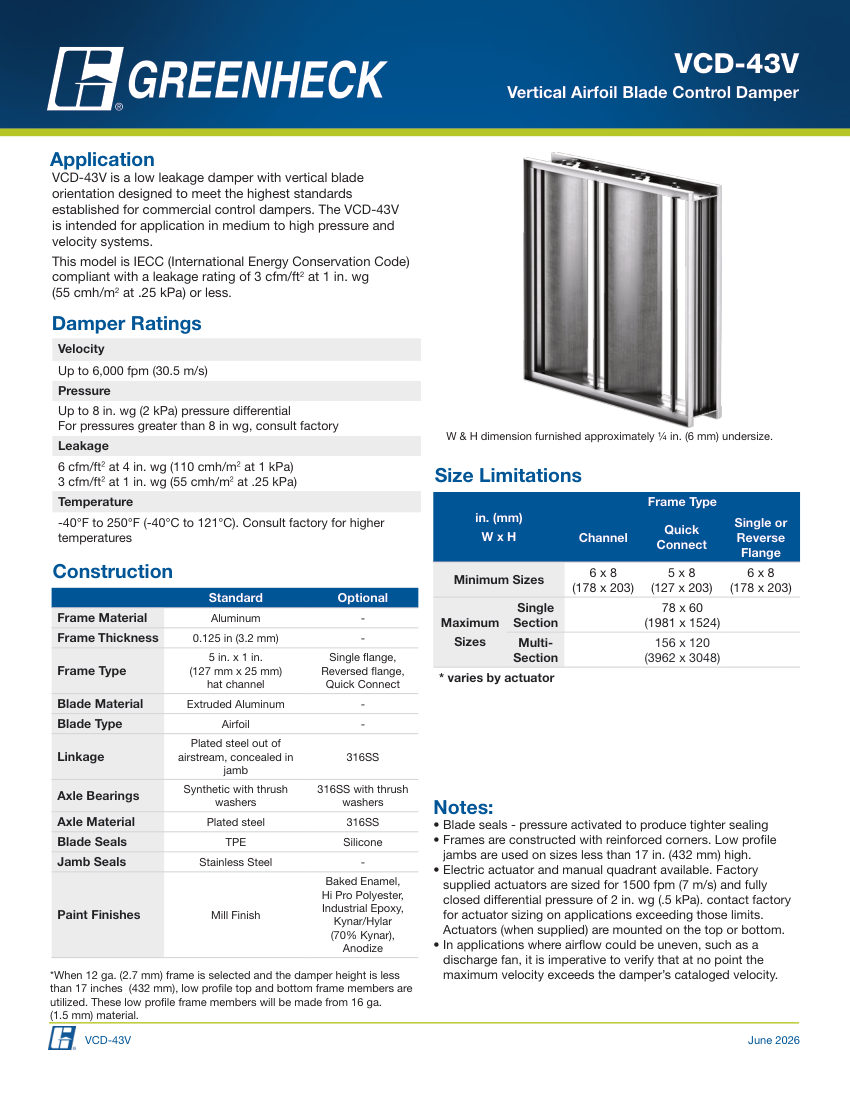

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | vcd-43v |
|---|---|
| Description | Greenheck Vertical Airfoil Blade Control Damper (Control Damper). Model VCD-43V. Leakage rating of 3 cfm/ft2 at 1 in. wg (55 cmh/m2 at .25 kPa); Temperature range -40°F to 250°F (-40°C to 121°C); Frame thickness 0.125 in (3.2 mm); Blade type is Airfoil. material: Aluminum frame, Extruded Aluminum blades |
| Connection size | Min 5x8 in (127x203 mm), Max 156x120 in (3962x3048 mm) |
| End connection | Single flange, Reversed flange, Quick Connect Flange |
| Pressure Rating | Up to 8 in. wg (2 kPa) |
| Flow Rate | Up to 6,000 fpm (30.5 m/s) |
| Finish | Mill Finish, Baked Enamel, Hi Pro Polyester, Industrial Epoxy, Kyna |
