Greenheckvcdr-53 round control dampervcdr-53
Greenheck Round Control Damper (Control Damper). Model VCDR-53. Blade seals made of silicone; Leakage rating 4 cfm/ft2 @ 1 in. wg; Temperature rating up to 250°F (121°C); Axle bearings available in Bronze or 316SS. material: Galvanized Steel (Standard), 304SS (Optional)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Greenheck
- Catalog no.
- vcdr-53
- Product type
- Dampers
- MasterFormat
- 23

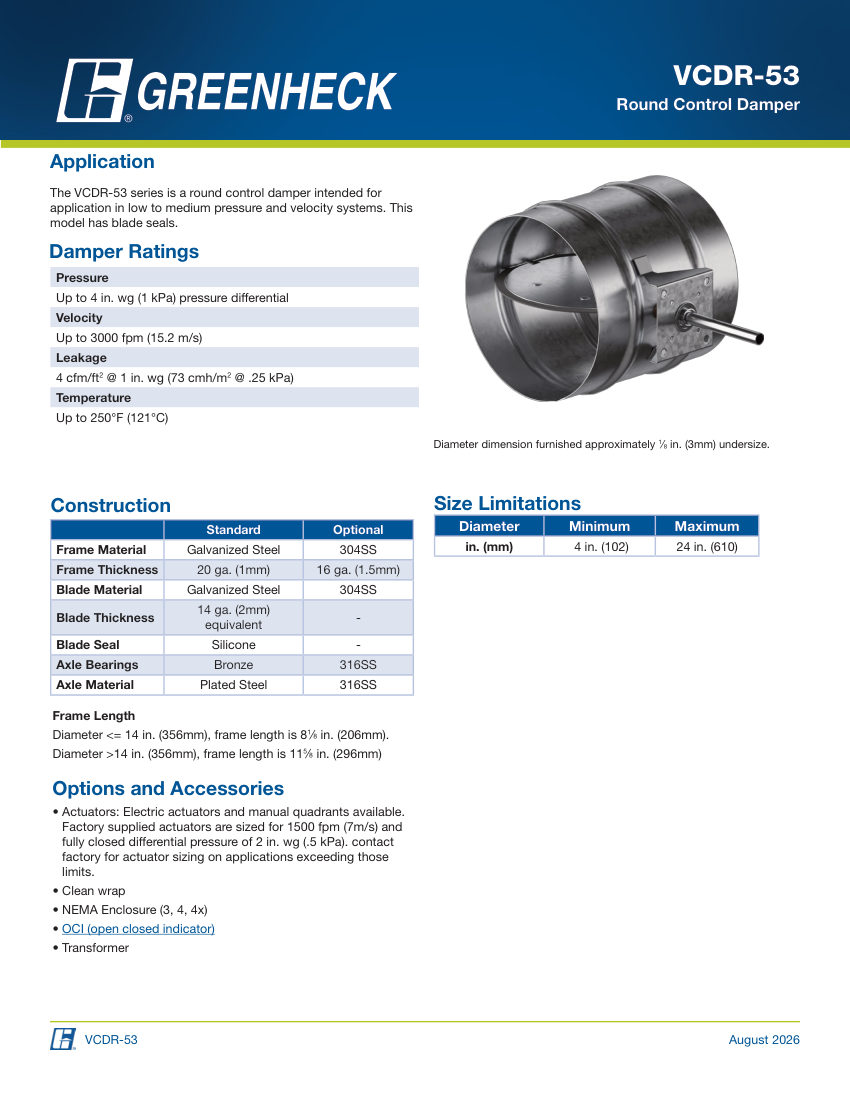

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | vcdr-53 |
|---|---|
| Description | Greenheck Round Control Damper (Control Damper). Model VCDR-53. Blade seals made of silicone; Leakage rating 4 cfm/ft2 @ 1 in. wg; Temperature rating up to 250°F (121°C); Axle bearings available in Bronze or 316SS. material: Galvanized Steel (Standard), 304SS (Optional) |
| Connection size | 4 in. (102) to 24 in. (610) diameter |
| End connection | Round |
| Pressure Rating | Up to 4 in. wg (1 kPa) |
| Flow Rate | Up to 3000 fpm (15.2 m/s) |
| Mounting | Ducted or Plenum. |
