DIV 23 · HVACPROCESS EXHAUST FANCUT SHEET INDEXED

GreenheckVektor-ERS Energy Recovery Laboratory Exhaust SystemVektor-ERS

Greenheck Energy Recovery Laboratory Exhaust System (Vektor). Model Vektor-ERS. Sensible effectiveness up to 55%; Temperature range -45° to 200°F; No cross-contamination or cross-leakage; MERV 8 or MERV 13 filters. material: Epoxy or corrosion-resistant coating with antimicrobial properties

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFVektor-ERS.pdfData sheet

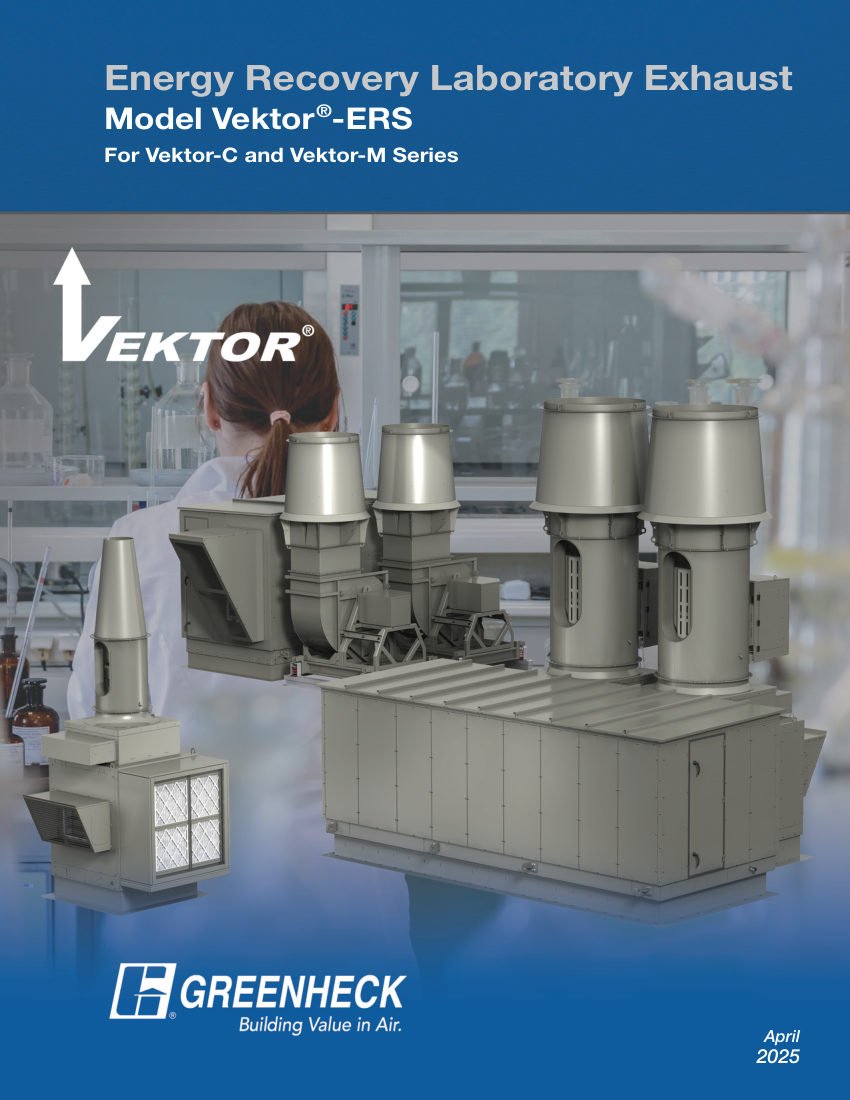

Greenheck Vektor-ERS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
Vektor-ERS
Product type
Process Exhaust Fan
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberVektor-ERS
DescriptionGreenheck Energy Recovery Laboratory Exhaust System (Vektor). Model Vektor-ERS. Sensible effectiveness up to 55%; Temperature range -45° to 200°F; No cross-contamination or cross-leakage; MERV 8 or MERV 13 filters. material: Epoxy or corrosion-resistant coating with antimicrobial properties
End connectionInternal or external coil connections
Flow Rate2,000 to 66,000 cfm
MountingPre-engineered cabinet
ComplianceUL/cUL 705 (File No. E40001), NFPA 45, ASHRAE 90.1.
