DIV 23 · HVACPROCESS EXHAUST FANCUT SHEET INDEXED

GreenheckVektor HS/MS/CS Laboratory Exhaust FansVektor-HS/MS/CS

Greenheck Laboratory Exhaust Fan (Laboratory Exhaust Systems). Model Vektor-HS/MS/CS. Variable Geometry Nozzle maintains safe exit velocity per ANSI Z9.5 (3000 ft./min or 15.2 m/s); Integral flow monitoring with fan venturi and Sure-Aire non-invasive flow measurement; Preprogrammed nozzle control adjusts position based on fan airflow demand; VGN Controller supports up to four fans with NEMA-3R enclosure. pressureRating: 3.5 in. wg (870 Pa) to 10 in. wg (2,490 Pa)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFVektor-HS-MS-CS.pdfData sheet

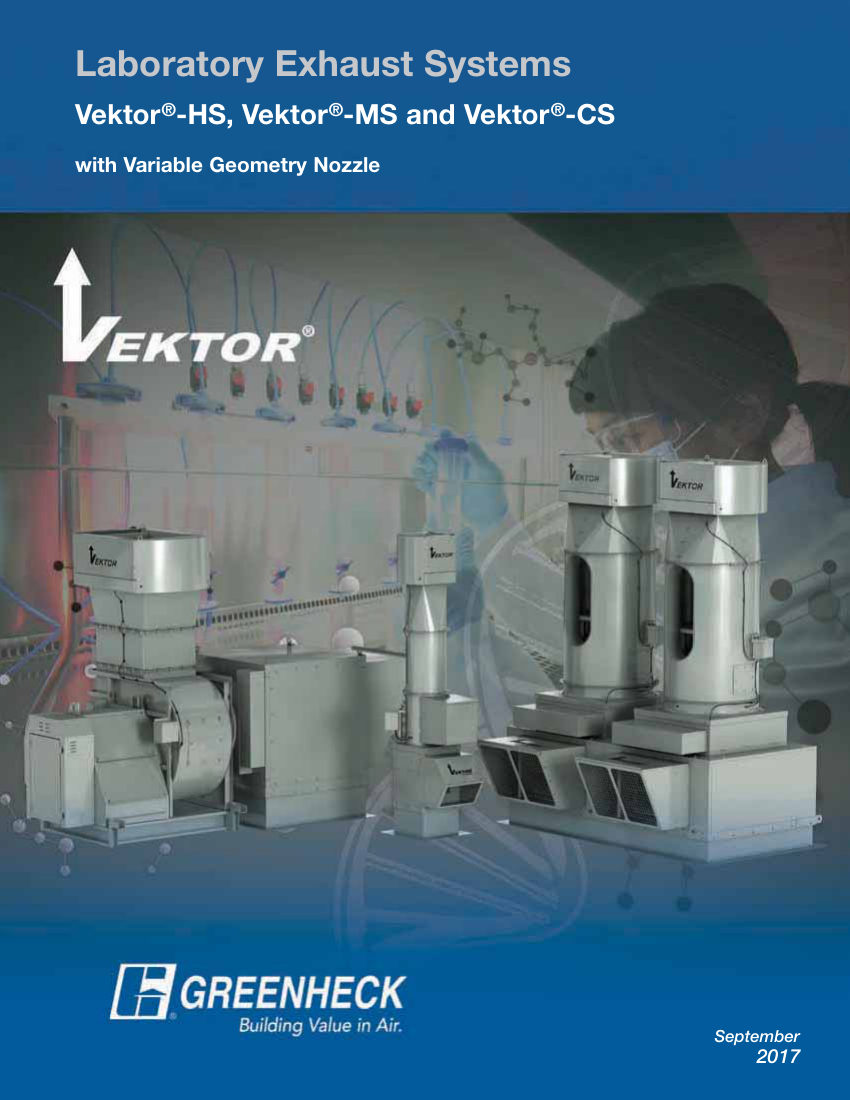

Greenheck Vektor-HS/MS/CS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
Vektor-HS/MS/CS
Product type
Process Exhaust Fan
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberVektor-HS/MS/CS
DescriptionGreenheck Laboratory Exhaust Fan (Laboratory Exhaust Systems). Model Vektor-HS/MS/CS. Variable Geometry Nozzle maintains safe exit velocity per ANSI Z9.5 (3000 ft./min or 15.2 m/s); Integral flow monitoring with fan venturi and Sure-Aire non-invasive flow measurement; Preprogrammed nozzle control adjusts position based on fan airflow demand; VGN Controller supports up to four fans with NEMA-3R enclosure. pressureRating: 3.5 in. wg (870 Pa) to 10 in. wg (2,490 Pa)
Flow Rate26,000 cfm (44,200 m3/hr) to 32,000 cfm (54,400 m3/hr)
ComplianceANSI Z9.5, AMCA Spark B/C, UL 705, Florida Product Ap
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
