Greenheckwd-100 series backdraft damperwd-100

Greenheck Backdraft Damper (WD-100 Series). Model WD-100. Frame material is 18 ga. (1.3 mm) galvanized steel; Blade material is 0.025 in. (0.64 mm) roll formed aluminum with vinyl seals; Operates on air pressure differential, closed by gravity; Maximum temperature rating is 180°F (82°C). material: Galvanized steel frame, roll formed aluminum blades

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFwd-100.pdfData sheet

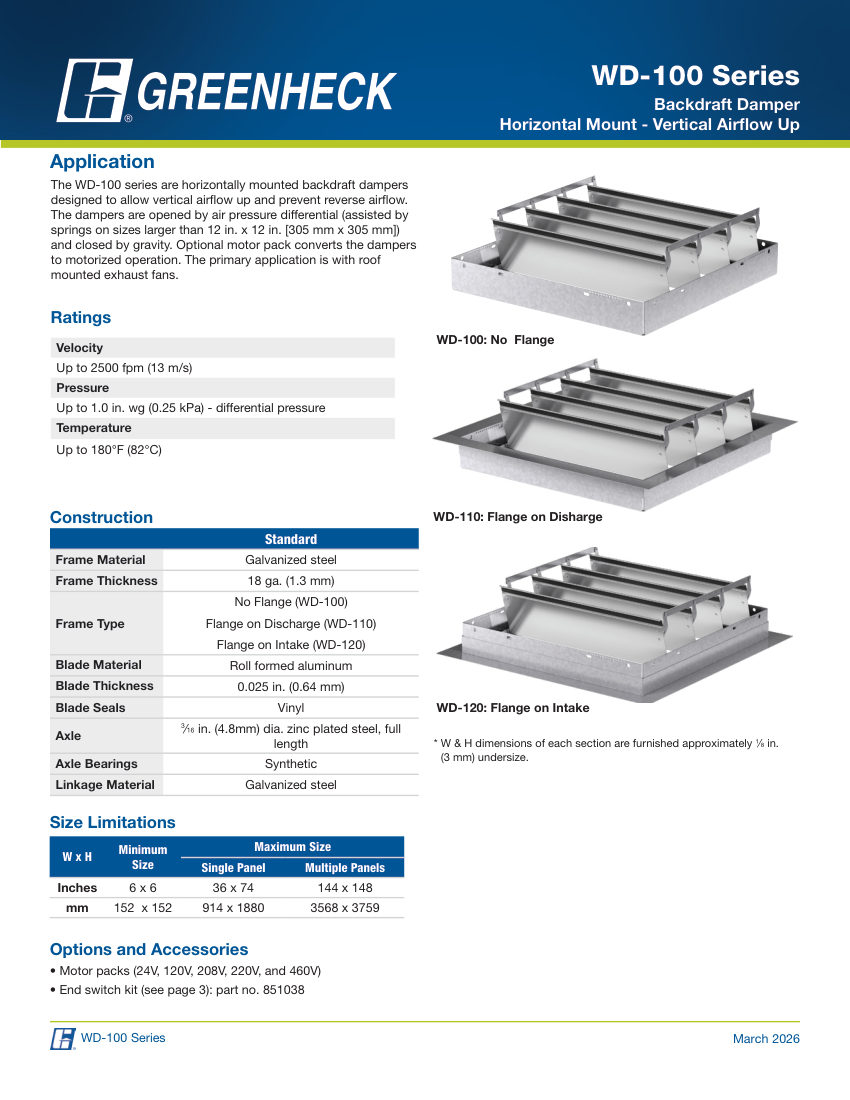

Greenheck wd-100 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
wd-100
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberwd-100
DescriptionGreenheck Backdraft Damper (WD-100 Series). Model WD-100. Frame material is 18 ga. (1.3 mm) galvanized steel; Blade material is 0.025 in. (0.64 mm) roll formed aluminum with vinyl seals; Operates on air pressure differential, closed by gravity; Maximum temperature rating is 180°F (82°C). material: Galvanized steel frame, roll formed aluminum blades
Connection size6x6 in. to 144x148 in.
End connectionNo Flange (WD-100), Flange on Discharge (WD-110), Flange on Intake (WD-120)
Pressure RatingUp to 1.0 in. wg (0.25 kPa) differential
Flow RateUp to 2500 fpm (13 m/s)
FinishZinc plated ste
