DIV 23 · HVACDAMPERSCUT SHEET INDEXED

Greenheckwd-200 series motorized backdraft damperwd-200

Greenheck Motorized Backdraft Damper (WD-200 Series). Model WD-200. Electrically motorized, opens when energized, spring return close when de-energized; Blade seals are vinyl; Axle bearings are synthetic; Operator is MP-200 series motor pack (shipped separately). material: Galvanized steel frame, roll formed aluminum blades

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFwd-200.pdfData sheet

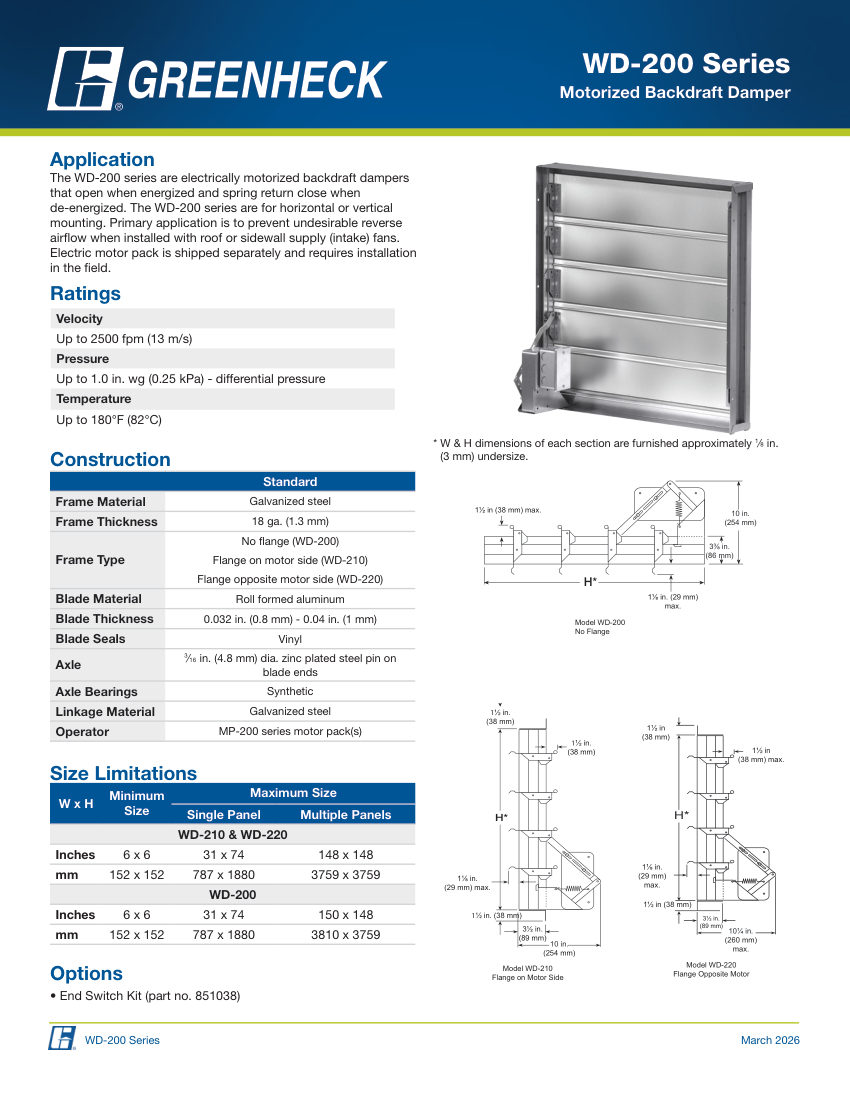

Greenheck wd-200 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Greenheck
Catalog no.
wd-200
Product type
Dampers
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberwd-200
DescriptionGreenheck Motorized Backdraft Damper (WD-200 Series). Model WD-200. Electrically motorized, opens when energized, spring return close when de-energized; Blade seals are vinyl; Axle bearings are synthetic; Operator is MP-200 series motor pack (shipped separately). material: Galvanized steel frame, roll formed aluminum blades
Connection sizeMin 6x6 in (152x152 mm), Max 150x148 in (3810x3759 mm)
End connectionNo flange (WD-200), Flange on motor side (WD-210), Flange opposite motor side (WD-220)
Pressure RatingUp to 1.0 in. wg (0.25 kPa) differential
Flow RateUp to 2500 fpm (13 m/s); finis
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
