DIV 27 · COMMUNICATIONSNETWORK INFRASTRUCTURECUT SHEET INDEXED

Panduit111238863

Panduit Cable Tie (Cable Management). Model PLT1M-96A, PLT2I-96A, PLT2S-96A, PLT3S-96A, PLT4S-96A, PLT3H-96A, PLT4H-96A. Material: Metal Detectable Nylon treated with antimicrobial compound

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF111238863.pdfData sheet

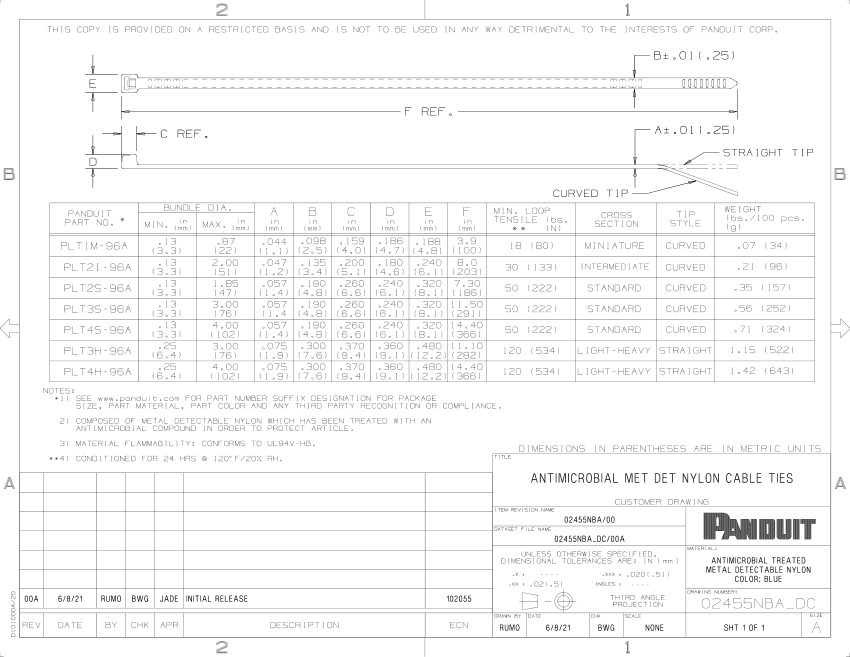

Panduit 111238863 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
111238863
Product type
Network Infrastructure
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog number111238863
DescriptionPanduit Cable Tie (Cable Management). Model PLT1M-96A, PLT2I-96A, PLT2S-96A, PLT3S-96A, PLT4S-96A, PLT3H-96A, PLT4H-96A. Material: Metal Detectable Nylon treated with antimicrobial compound
FlammabilityConforms to UL94V-HB
Tensile StrengthRanges from 18 lbs (80 N) to 120 lbs (534 N)
Tip StylesCurved (Miniature, Intermediate, Standard) and Straight (Light-Heavy). material: Metal Detectable Nylon with Antimicrobial Compound
DimensionsBundle Dia. Min 0.13 in (3.3 mm) to 0.25 in (6.4 mm); Lengths 0.87 in (22 mm) to 4.00 in (102 mm)
ComplianceUL94V-HB.
